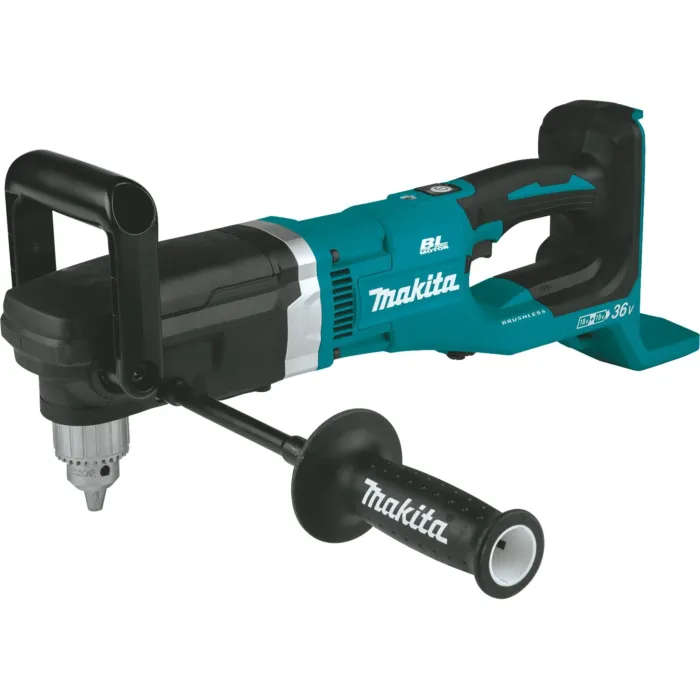

The Makita 36V (18V X2) LXT® Brushless 1/2" Right Angle Drill combines Makita's expertise in brushless motor technology and battery innovation to deliver maximum cordless performance. Powered by two 18V LXT® Lithium-Ion batteries (sold separately), this drill is engineered to handle the most demanding applications, such as drilling up to 6-1/4” holes with hole saws. Its electronically-controlled BL™ Brushless motor intelligently matches torque and RPM to the application's changing demands, offering no-load drilling speeds of 0-350 RPM and 0-1,400 RPM. This is further enhanced by Automatic Speed Change™ technology, which adjusts speed and torque under load for optimum efficiency. The XAD03 ensures maximum productivity with an electric brake and features a built-in clutch (low speed only) to reduce gear damage by disengaging if the bit binds. Being part of the world's largest 18V Lithium-Ion system, it allows users to stay on one battery platform, benefiting from the fastest charging times and the built-in protection of Star Protection Computer Controls™ against overloading, over-discharging, and overheating. With two 18V 5.0Ah batteries, the XAD03 can deliver up to 160 2-9/16" holes per charge in 2x SPF (batteries sold separately).
- Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed, and run time without the hassles of a cord (batteries not included)
- Drills up to 6-1/4" holes with hole saws and 4-5/8" holes with self-feed bits
- Drills up to 160 2-9/16" holes per charge in 2x SPF using two 5.0Ah batteries and self feed bit (batteries and bit not included)
- Makita BL™ Brushless Motor combined with X2 LXT® technology delivers no-load drilling speeds of 0-350 RPM and 0-1400 RPM for maximum efficiency
- Automatic Speed Change™ technology adjusts drill speed and torque during drilling for optimum performance
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Metal-gear housing increases tool durability and extends reliability
- Torque limiter; built-in clutch reduces gear damage by disengaging gears if the bit binds (low speed only)
- Electric brake for maximum productivity
- Variable 2-speed design (0-350 RPM and 0-1400 RPM) for optimum speed control and drilling versatility
- Built-in LED light illuminates the work area
- Built-in tether notch (tether sold separately)
- Includes chuck key with convenient on-tool storage
- Auto power-off feature preserves battery and tool life
- Adjustable top handle for easy positioning
- Ergonomically designed handle with rubberized soft grip provides increased comfort on the job
- Includes side handle for better bracing and control
- Compact and ergonomic design at 21-1/4 in long; weighs only 14 lb with batteries (batteries not included) for reduced operator fatigue
| Brand | Makita |
|---|---|
| UPC | 088381859011 |
| Store Location (Lititz, PA) | Aisle 25, Section N2 |
| Package Length (in) | 7.20" |
| Package Width (in) | 4.40" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | XAD03Z |
| Type | Brushless |
| Series | LXT® |
| Tool/Kit | Tool |
| Capacity | 5", 1-1/2", 2-9/16" |
| Chuck Size | 1/2" |
| Chuck Type | Keyed |
| Voltage Rating | 18 V |
| Battery Type | Lithium-Ion |
| Battery Capacity | 5.0 Ah |
| Speed Rating | 0-450/0-1400 rpm |
| Speed Setting | 2 |
| Handle Type | Ergonomically Rubberized Grip |
| Overall Length | 21-1/4" |
| Includes | (1) Side Handle (126802-7), (1) Hex Wrench (783204-6), (1) Drill Chuck (763250-5), (1) Chuck Key (763251-3) |
