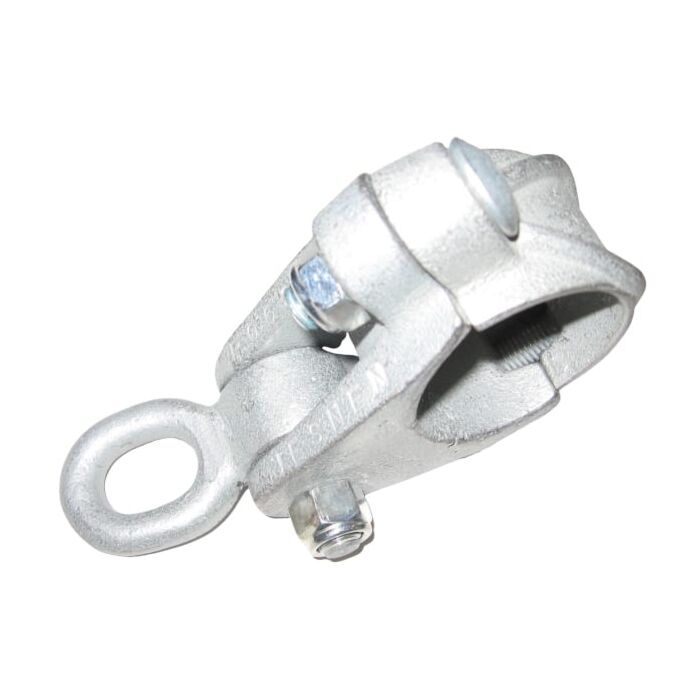

Ductile Iron Galvanized Pipe Swing Hanger - 2-3/8 in.

This galvanized ductile iron swing hanger features a loop pendulum with a self-lubricating sintered bronze bearing for reduced wear. It has a 0.51" ID oil-light bearing, accepts a 12mm bolt, and includes an axle bolt with a lock-tight nut. The 1" wide pendulum is secured with a #12 axle bolt with a long shoulder, preventing bearing contact with threads, and a lock-tight nut. The hanger's two halves are bolted together with a 12mm carriage bolt and hex lock-tight nut. Designed to fit a standard schedule 40 two-inch pipe, it has a tensile strength of 7900 lbs. Do not torque more than 25 ft-lbs during installation. This product is expected to last 2-5 years depending on conditions.

• Designed to fit around a round pipe
• Two halves form the entire cantilever
• 7900 lb tensile strength
