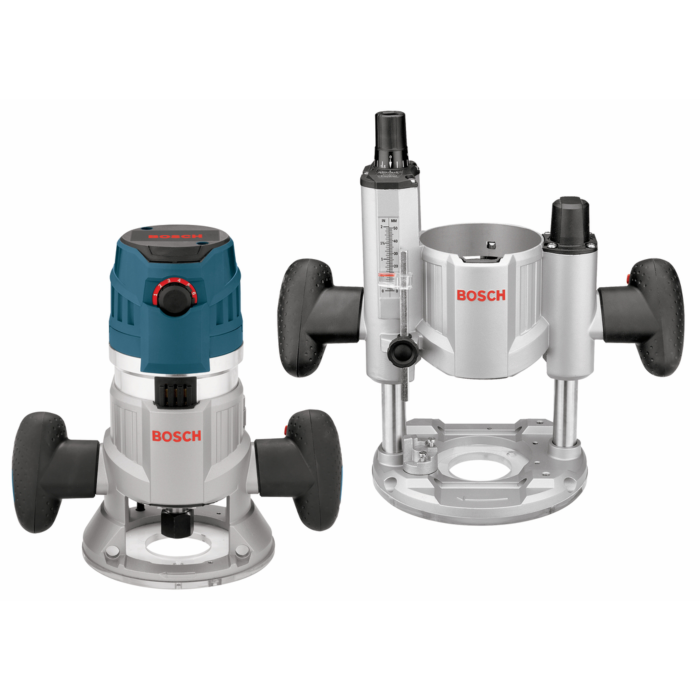

The Bosch MRC23EVSK 2.3 HP Electronic Modular Router System is an advanced set-up that provides a fixed base and a plunge base for the MR23EVS router. This system allows for outstanding operator control, with the trigger-control system that has a power switch in both the plunge-base's and the fixed-base's handle. The plunge base's Afterlock microfine bit-depth adjustment at any plunge setting allows for precision, with an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. The fixed base has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. The router has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
- Bosch RA1054
- Bosch RA1125
- Bosch RA1171
- Bosch RA1181
- Bosch RA1177AT
- Bosch RA1151
- Bosch MRF01
- Bosch MRP01
- Bosch RA1126
- Bosch RA1152
- Trigger-control system – trigger power switch located in handle for enhanced control
- Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
- Precision-centering design – makes it easy to keep bit on cutline
- Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting
- Versatile fixed-base depth adjustment – features 1-5/8 In. continuous microfine adjustment range
- Above-table depth adjustment when fixed base is installed in router table
- Constant Response circuitry – maintains constant speed under load
- Soft-start function – reduces start-up torque
- Always-on LED lighting – for enhanced visibility in bit area
- Two-stage quick clamp system – for fast tool-free conversion
- Variable speed dial – for matching speed to workpiece and task
- Contoured soft grip handles – for enhanced control and comfort
- Fixed base has threaded holes for mounting to router table positioned in common three-hole pattern
- Cord swivel – for added mobility
- Rugged carrying case has compartments for all included items
Brand | Bosch |
---|---|
UPC | 000346391503 |
Store Location (Lititz, PA) | Aisle 27, Section N4 |
Package Length (in) | 12.20" |
Package Width (in) | 3.60" |
Package Height (in) | 3.60" |
Manufacturer Part Number | MRC23EVSK |
Adjustable Depth Stops | Yes |
Amperage (A) | 15 |
Base Diameter | 6" Fixed/ 7" Plunge |
Base Diameter (in) | 6 |
Bit Change Type | 1/4 In. and 1/2 In. Self-releasing Collet Chuck |
CSA Certified | No |
Case Included | Yes |
Case Type | Hard plastic |
Collet Capacity | 1/4", 3/8", 1/2", 8 mm |
Color / Finish | Blue |
Cord Length (ft) | 10 |
Cord Length (in) | 120 |
Cordless / Corded | Corded |
Country of Origin | Mexico |
Depth Adjustment | Yes |
Depth Capacity (in) | 3 |
Dust Collection | No |
ETL Listed | No |
Electronic Speed Control | Yes |
Fence Included | No |
Fixed-Base Depth Range | 1-5/8" |
GTIN | 00000346391503 |
Handle Type | Side Handles |
Height (in) | 9.5 |
Horsepower (hp) | 2.299999 |
Housing Material | Metal, Plastic |
Length (in) | 6.75 |
Lock-on Switch | Yes |
Maximum RPM | 25000 |
Motor Horsepower (hp) | 2.3 |
Net Tool Weight (lbs) | 12.6 |
Plunge Depth | 3" (75mm) |
Plunge Lock Control | Yes |
Powered Tool Power Source | Electric - Corded |
Primary Collet Size | 1/2 Inch |
Rating | 120V AC |
Router Base Type | Fix / Plunge |
Secondary Collet Size | 1/4 Inch |
Spindle Lock | No |
Subbase Opening | 2" |
Switch Type | Trigger switch in handles |
Tool Storage | Case |
UL Listed | Yes |
Variable Speed | Yes |
Voltage | 120 |
Voltage (V) | 120 |
Weight | 9.3 lb |
Weight (lbs) | 12.6 lb |
Width (in) | 12.6 |
