Features
Specifications

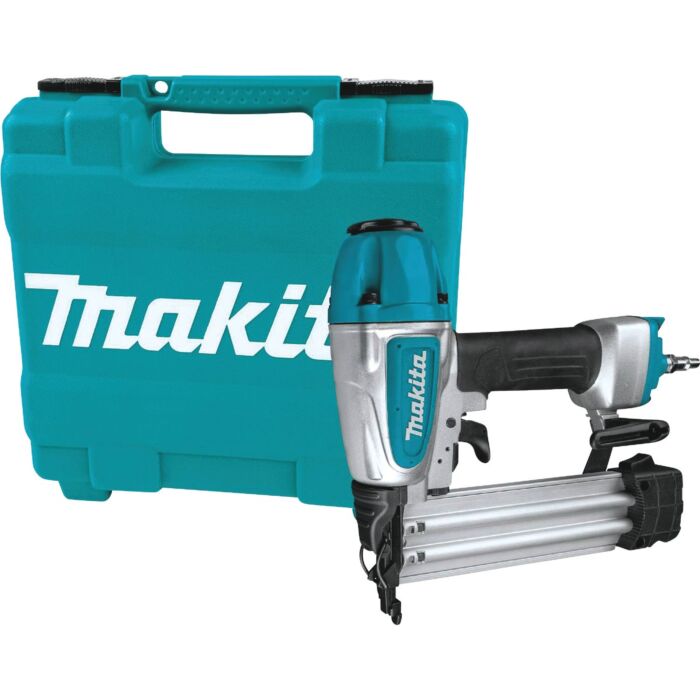

The Makita 18 Gauge 2-inch Brad Nailer (model AF506), features a durable and compact design with ease-of-use features including a narrow-nose design that makes it ideal for a wide variety of finish applications. The AF506 can operate from 70 to 120 PSI, and drives a range of 18 gauge brad nails from 5/8” to 2-inch, and has a magazine capacity up to 100 nails. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface. Additional features include an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient “tool-less” depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 degrees to direct exhaust air away from the user. The AF506 is engineered for driving a range of 18 gauge brad nails from 5/8" to 2" into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.
- Side loading magazine holds up to 100 nails for maximum efficiency
- Powerful motor drives a range of 18 gauge brad nails from 5/8" to 2" into hard or soft wood applications
- 2 No-mar tip
- Narrow nose design allows easy nailing access in confined areas
- PRECISION - Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications
- ACCURACY - Narrow nose design allows easy nailing access in confined areas
- DESIGN - "Tool-less" easy to clear nose for fast and easy nail extraction
- Non-marring rubber nose and bumpers protect the wood's surface from being scratched or damaged
- "Tool-less" easy to clear nose for fast and easy nail extraction
- Multi-directional exhaust port directs exhaust air away from operator
- Housing bumpers protect tool and work surface
- Aluminum body, magazine and cylinder for strength and durability; weighs only 2.9 lbs.
- Safety Glasses
- Dual nail reload indicator window alerts the user when to reload nails to avoid blank drives
- 3-year limited warranty
- CONVENIENCE - Built-in air duster provides convenient air flow to clear work surface
- Easy to use "tool-less" depth adjustment dial for a wide variety of finish applications
- Cast and machined nose piece for precise contact
- Pneumatic Nailer Oil
- Reversible belt hook allows the tool to remain close
- Air Fitting
- INCLUDES - Pneumatic nailer oil, no-mar tips (2), safety glasses, air fitting, and tool case
- Tool Case
- Minimum recommended air delivery of 1.5 SCFM @ 90PSI
- Integrated rubber soft grip for operator comfort
- Built-in air duster provides convenient air flow to clear work surface
- Ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications
| Brand | Makita |
|---|---|
| UPC | 088381870733 |
| Store Location (Lititz, PA) | Aisle 28, Section M4 |
| Package Length (in) | 13.60" |
| Package Width (in) | 4.60" |
| Package Height (in) | 14.00" |
| Manufacturer Part Number | AF506 |
| Country of Origin | China |
| Inlet Size | 1/4" NPT |
| Air Consumption (SCFM) | 2 |
| Maximum Magazine Capacity | 100 |
| Industrial Style Fitting Included | 1/4" NPT x 1/4" |
| Net Weight | 2.9 lbs. |
| Air Fitting Included | Yes |
| Shipping Weight | 7.5 lbs. |
| Power Type | Pneumatic |
| Operating Air Pressure (PSI) | 70 - 120 |
| UPC Code | 088381-870733 |
| Operating Air Pressure (Bar) | 4.9 - 8.3 |
| Fastening category | Brad |
| Dimensions (LxWxH) | 9-7/8" x 2-3/4" x 10-1/8" |
| Tool Hook Included | Yes |
| Nail Size | 5/8" to 2" (18 ga.) |
