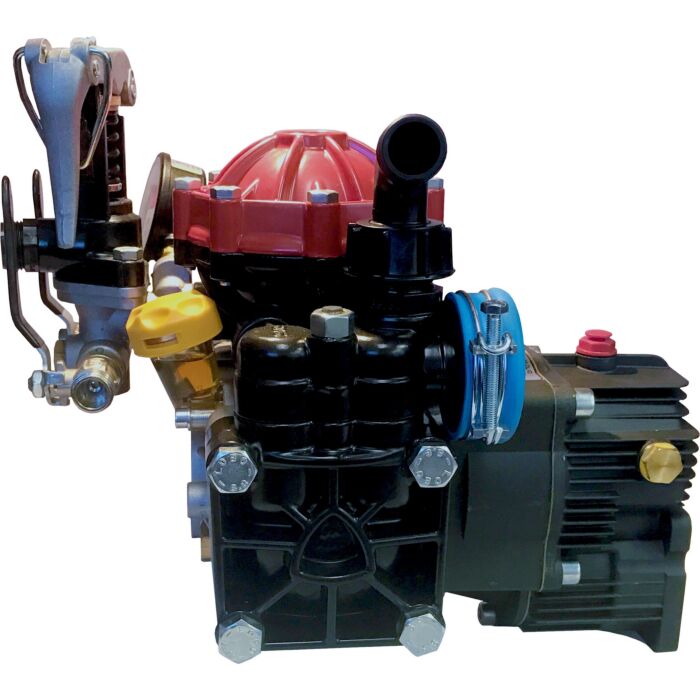

Annovi reverberi ar30-gr3/4-gci 550 rpm semi-hydraulic two diaphragm alternating volumetric pump for use in gardening or semi-professional agricultural sector, trolley-mounted in combination with electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

Parts in contact with pumped liquids in plastic-coated aluminum and body in aluminum
Diaphragms in nbr, h.p.d.s., desmopan or viton
Seals in nbr or viton
Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
Spherical sector profile valves for lower flow resistance and improved volumetric efficiency

Brand

Store Location (Lititz, PA)

Aisle 11, Section X4

Package Length (in)

14.00"

Package Width (in)

12.00"

Package Height (in)

15.00"

Manufacturer Part Number

AR30-GR3/4-GCI

Nominal Size

1 in Inlet x 1/2 in Outlet

Connection Type

NPT

Flow Rate

9 gpm

Diaphragm Material

NBR

Pressure Rating

580 psi

Temperature Rating

140 deg F

Power Rating

2.9 hp

My Cart

1 in Inlet x 1/2 in Outlet Nominal Size NPT 9 gpm Diaphragm Pump
