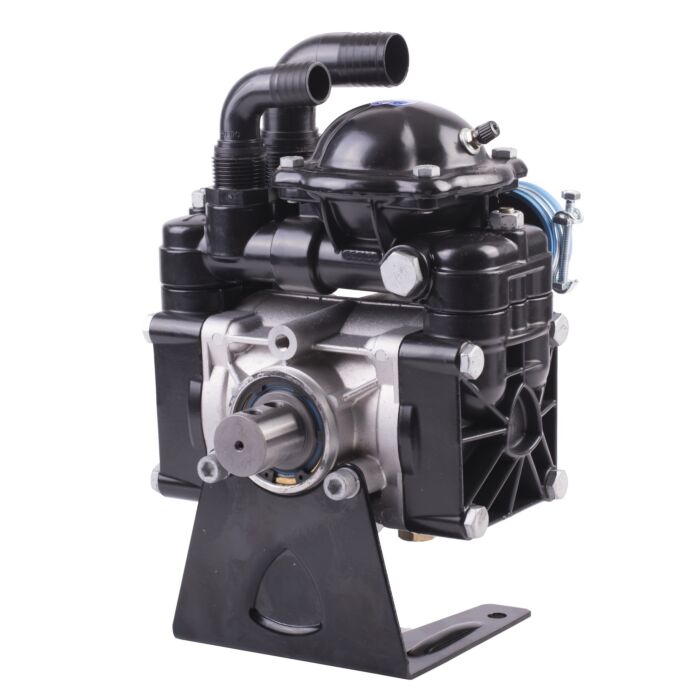

Low Pressure 2 Diaphragm Pump - 290PSI, 19.6GPM, 550RPM
SKU: AR70BPSP
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$834.99
Features
Specifications
Downloads
The Annovi Reverberi AR70BP-SP Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its straight, 3/4" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 19.6 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a polypropylene pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR70BP-SP agriculture pump.
- Alternating volumetric pumps with two semi-hydraulic diaphragms for use in agriculture in low pressure systems for spraying open field crops with fertilizers, pesticides or weed killers
- Parts in contact with pumped liquids in plastic-coated aluminum and body in aluminum
- Diaphragms in nbr, h.p.d.s., desmopan or viton
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Remote level monitoring sensor on request
- Remote oil tank installation kit available on request
| Brand | AR |
|---|---|
| Store Location (Lititz, PA) | Aisle 11, Section X5 |
| Package Length (in) | 9.50" |
| Package Width (in) | 9.00" |
| Package Height (in) | 13.00" |
| Manufacturer Part Number | AR70BP-SP |
| Nominal Size | 1 in Outlet |
| Flow Rate | 19 gpm |
| Diaphragm Material | NBR |
| Pressure Rating | 290 psi |
| Temperature Rating | 140 deg F |
| Power Rating | 3.4 hp |
