1/2 in Outlet Nominal Size NPT 9 gpm Diaphragm Pump
SKU: AR30SP | Location: Aisle 11, Section X5
$534.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Not available for parcel delivery
2 In stock
Features
Specifications
Downloads

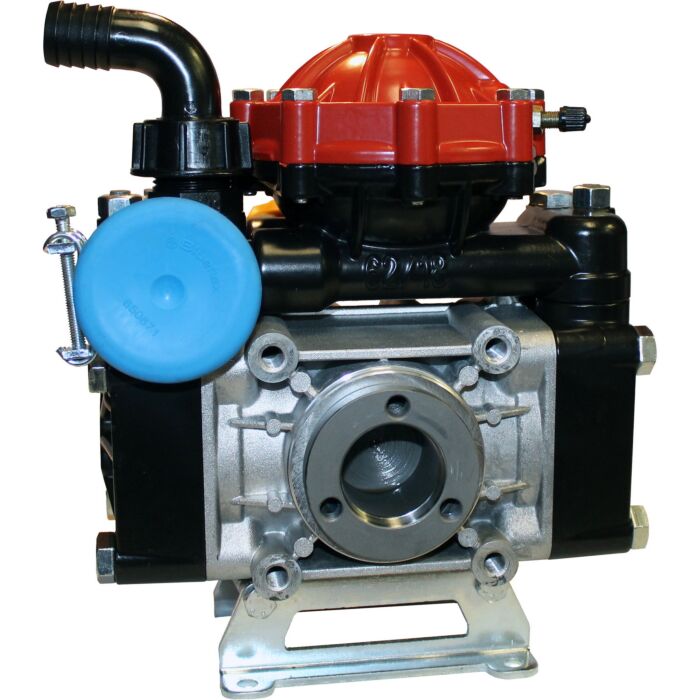

Annovi reverberi ar30-sp 550 rpm semi-hydraulic two diaphragm alternating volumetric pump for use in gardening or semi-professional agricultural sector, trolley-mounted in combination with electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
- Parts in contact with pumped liquids in plastic-coated aluminum and body in aluminum
- Diaphragms in nbr, h.p.d.s., desmopan or viton
- Seals in nbr or viton
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
- New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
| Brand | AR |
|---|---|
| Store Location (Lititz, PA) | Aisle 11, Section X5 |
| Manufacturer Part Number | AR30-SP |
| Nominal Size | 1/2 in Outlet |
| Connection Type | NPT |
| Flow Rate | 9 gpm |
| Diaphragm Material | NBR |
| Pressure Rating | 580 psi |
| Temperature Rating | 140 deg F |
| Power Rating | 2.9 hp |
