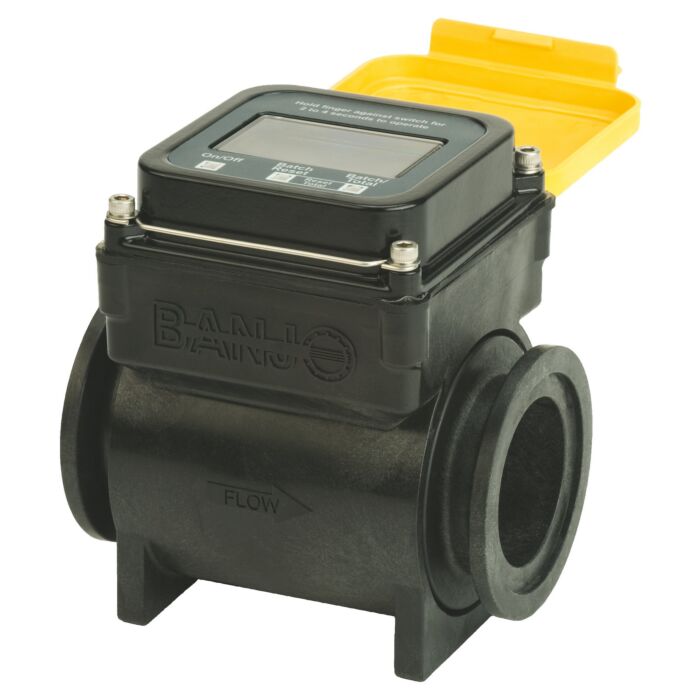

200 psi Glass Reinforced Polypropylene 2 in Full Port Manifold Flow Meter
SKU: MFM220 | Location: Aisle 08, Section T1
$874.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Manifold Flow Meter, Full Port, 200 psi, Glass Reinforced Polypropylene, 2 in
- Displays overall total volume and batch total volume
- Easy to change six (6) aa batteries
- Flow rate allows for gal or liters per minute
- Glass-reinforced polypropylene
- Measures water and most conductive liquids
- No moving parts to fail during use
- Self calibrating meter
- Temperature range from 0 deg to 150 deg f
- Maximum operating pressure 200 psi
- The display reads 6 digits for rate, 8 digits for total and 1 decimal place reading in tenths
- There are 3 photoeyes located on the face of the flowmeter. note: these are not push button, to activate you must hold your finger over the photoeye for 2-4 seconds
- It is recommended to have at least 10x the diameter of straight pipe before and after the flow meter
| Brand | Banjo |
|---|---|
| UPC | 062018003336 |
| Store Location (Lititz, PA) | Aisle 08, Section T1 |
| Package Length (in) | 7.00" |
| Package Width (in) | 7.00" |
| Package Height (in) | 7.00" |
| Manufacturer Part Number | MFM220 |
| Type | Full Port |
| Pressure Rating | 200 psi |
| Material | Glass Reinforced Polypropylene |
| Dimensions | 2 in |
