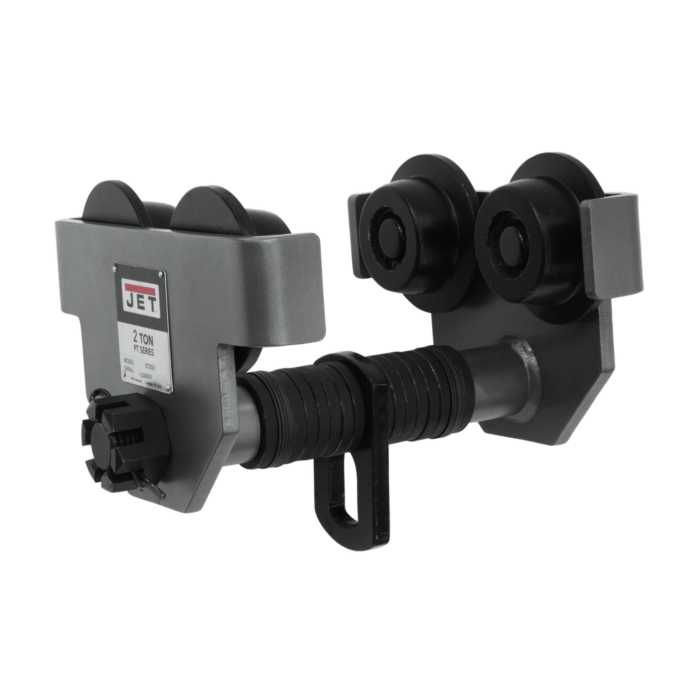

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Brand | JET Tools |
---|---|
UPC | 662755223303 |
Store Location (Lititz, PA) | Aisle 11, Section I1 |
Package Length (in) | 5.80" |
Package Width (in) | 8.60" |
Package Height (in) | 8.60" |
Manufacturer Part Number | JT9-252020 |
Country of Origin | China |
Length | 15.3 |
Width | 5.5 |
Height | 8.5 |
Weight | 50.8 |
Warranty | 2 Year |
Capacity (Lbs.) | 4400.0000 |
Hook Mount Headroom (In.) | 6 |
Load Capacity (Tons) | 2 |
Maximum Beam Flange Width (In.) | 8 |
Minimum Beam Curve Radius (In.) | 43 |
Minimum Beam Flange Width (In.) | 3-1/4 |
Minimum Beam Height (In.) - jpw_minimum_beam_heighth_in | 4.0000 |
Wheel Diameter (In.) | 3-1/2 |
Max. Hook Size (W/in.) | 1-3/7 |
Minimum Beam Height (In.) - Min_Beam | 19 |
Overall Dimensions (L x W x H / in.) | 11-8/9 x 13-7/9 x 6-2/3 |
