DEWALT

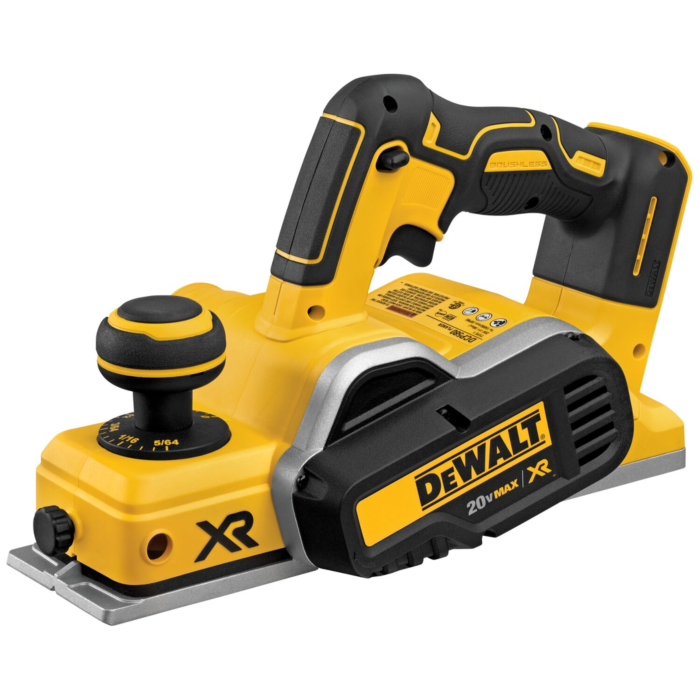

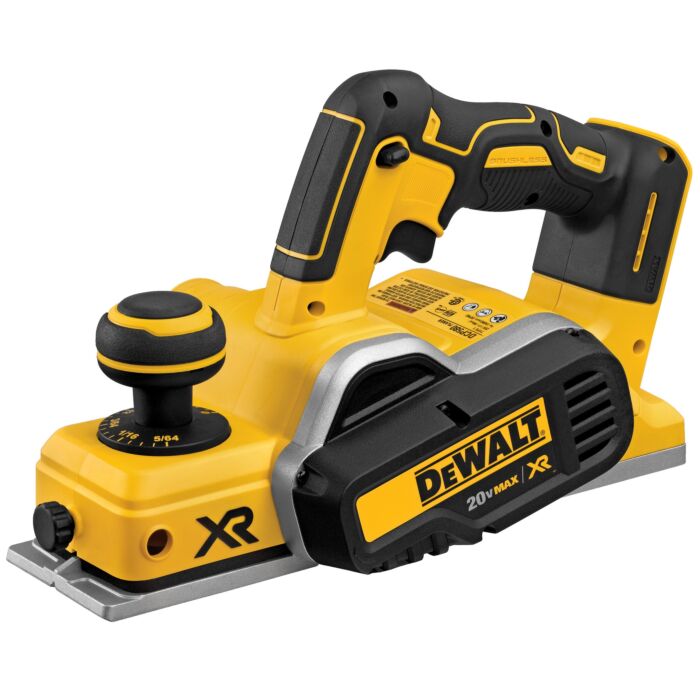

20V MAX* XR Brushless Cordless Planer (Tool Only)

SKU: DCP580B | Location: Aisle 22, Section M4
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 31 In stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

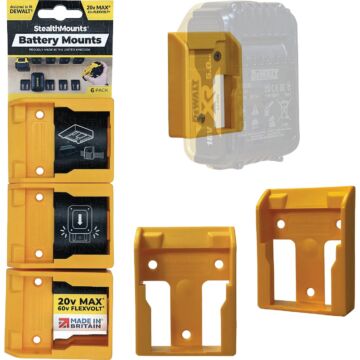

StealthMounts Dewalt Battery Mounts 20V 6pk
StealthMounts
$24.99
BMDW20YLW6

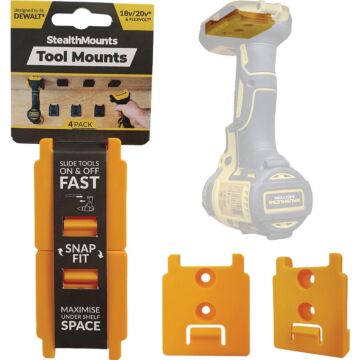

StealthMounts Dewalt Tool Mounts 20V 4pk
StealthMounts
$24.99
TMDW18YLW4

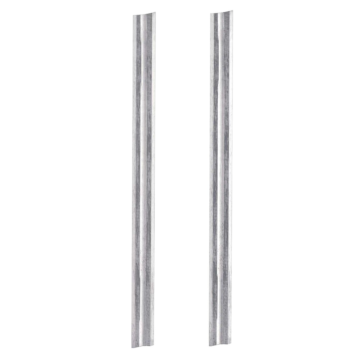

DEWALT Reversible Carbide Blade Set (For Dw677, Dw678, And Dw680K)
DEWALT
$13.99
DW6654

Out of stock

Features chevron-down chevron-up
The DCP580B features a brushless motor for maximum efficiency that helps to maintain speed under load. The brushless planer features a 3-1/4-inch width capacity and ability to adjust depth at 1/256-inch adjustments with a rebate capacity of 5/64-inch The planer weighs 6.8 lbs. and operates on the DEWALT 20V MAX battery system. Lightweight and cordless, the hand planer for woodworking can be easily transported around the jobsite without the hassle of a cord. Battery, charger and dust bag sold separately.
  • Brushless Motor provides power and runtime
  • 30,000 cuts per minute achieve a fast removal rate
  • 5/64 in. (2 mm.) maximum depth of cut
  • Calibrated depth adjustment knob to 1/256 in. (0.01 mm. approximately)
  • Precision-machined front and back aluminum shoes ensure parallelism of cut
  • Kickstand allows user to rest the planer on work surface without gouging the material
  • Precision machined groove in front shoe allows for edge chamfering
  • Poly-V drive belt provides increased belt durability
  • Ergonomically designed handle provides greater comfort and less user fatigue
  • Replacement blades DW6654 Part Number: N447366
  • Yes
Specifications chevron-down chevron-up
Brand DEWALT
UPC 885911450126
Store Location (Lititz, PA) Aisle 22, Section M4
Package Length (in) 6.94"
Package Width (in) 8.00"
Package Height (in) 8.00"
Manufacturer Part Number DCP580B
Country of Origin China
Length 13.7 in
Width 7.85 in
Height 8.9 in
Weight 7.8 lbs
Power Source Battery
Cordless Vs. Corded Cordless
Motor Type Brushless
Voltage 20 V V
Battery Included No
Battery Type 20V MAX Lithium Ion
Battery Test Summary DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf
Charger Included No
Amperage 0.0
Battery Required Yes
Number Of Batteries Required 1
Disclaimer Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
Prop 65 Generic Warning Yes
Warranty 3LW1YS90D
Certifications Or Listings UL Listed
California Prop 65 Warning Label http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf
Claims Needed Yes
Bare Tool Yes
Blade Qty 2
Case Type N/A (no case)
Cutting Width 3.25 In
Depth 0.078 In
Flow Rating 1 Gpm
Housing Material Plastic
Individual Vs. Set (Syndigo) INDIVIDUAL
Maximum Pressure Rating 550 Psi
Maximum Speed 15000 RPM Rpm
Power Input 1400 W
Shoe Length 3.25 In
Uncertainty K1 (Vibration) 2
Product Material Group WOOD
