Features
Specifications

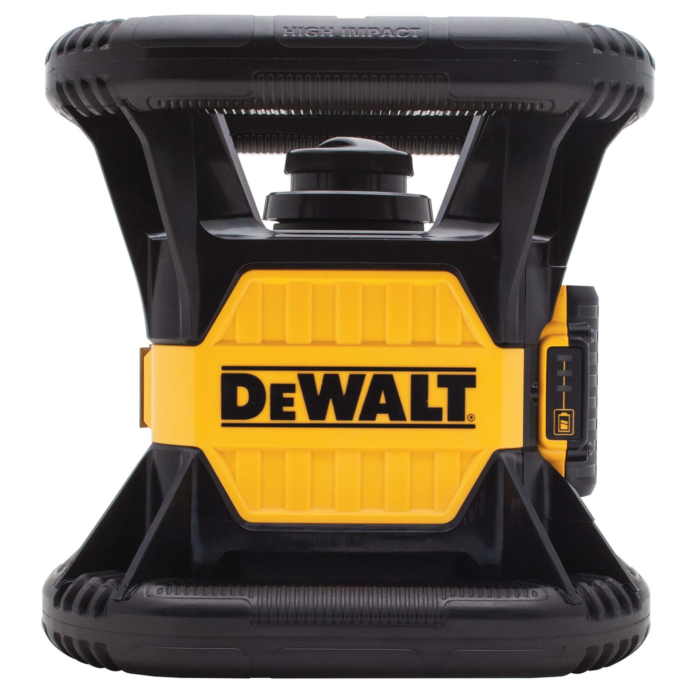

This red rotary construction laser is built tough with the ability to withstand a 1M drop. Use with the included detector and achieve a 1,500 ft. range making it a must have tool on your jobsite. The laser level for picture hanging also runs on a widely accepted battery platform for added convenience.
- IP54 Rating
- 1 Meter Drop Rating
- 1500 ft. Range with Detector
- +/- 1/8" Accuracy at 100ft
- Single Axis Slope Mode
- Vertical and Horizontal Alignments
- Up Plumb Spot
- Scan Mode 15/45/90 degrees
- 5/8 11" removable tri-pod adapter
- TSTAKStorage Case
Brand | DEWALT |
---|---|
UPC | 076174803556 |
Package Length (in) | 17.00" |
Package Width (in) | 12.80" |
Package Height (in) | 13.00" |
Manufacturer Part Number | DW074LR |
Country of Origin | China |
Height | 13.000 in |
Length | 18.000 in |
Width | 13.900 in |
Weight | 16.700 lbs |
Voltage | 20 V V |
Battery Type | 20V MAX* Lithium Ion |
Battery Qty | 1 |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Net Lit-Ion Y/N | Yes |
Charger Included | Yes |
Charger Type | Jack Plug |
Battery Required | Yes |
Number Of Batteries Required | 1 |
Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
Hazmat | Li-Ion (<101 WH) |
Laser | 3 Bp |
Prop 65 Generic Warning | No |
Warranty | 3LW1YS90D |
Claims Needed | Yes |
Hazmat Code | A1 |
Accuracy | ±1/8 in. |
Mounting Method | Wall or Tripod |
Self Leveling | Yes |
