DEWALT 20V MAX* XR 18 Guage Cordless Brad Nailer (Tool Only)
SKU: DCN680B
| Location: Aisle 28, Section N6
$349.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
12 In stock
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Features
Specifications
Downloads

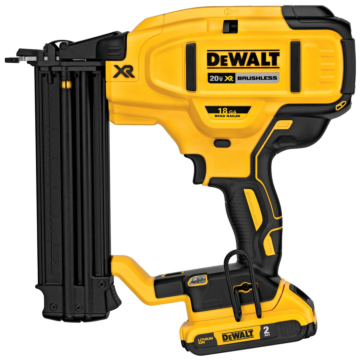

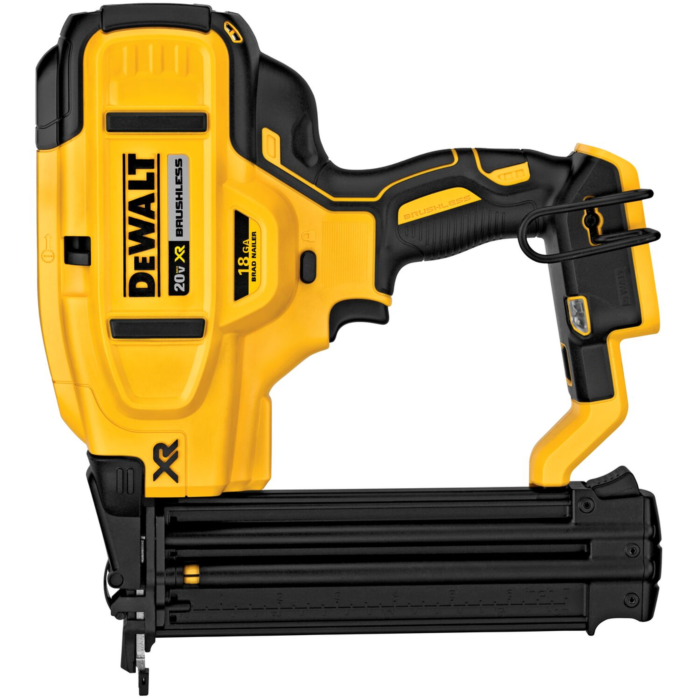

The DEWALT DCN680 18 Gauge Brad Nailer drives 18 Gauge brad nails from 5/8 in. to 2-1/8 in. which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Brushless motor maximizes runtime and durability
- Micro nose improves line of sight and accuracy of nail placement (Compared to DEWALT DC608)
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Tool-free selectable trigger for sequential or contact actuation modes
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Low nail lockout prevents dry firing and unwanted marks on the work material
- Yes
| Brand | DEWALT |
|---|---|
| UPC | 885911482233 |
| Store Location (Lititz, PA) | Aisle 28, Section N6 |
| Package Length (in) | 12.99" |
| Package Width (in) | 11.60" |
| Package Height (in) | 11.60" |
| Manufacturer Part Number | DCN680B |
| Country of Origin | Mexico |
| Length | 13 in |
| Width | 11.5 in |
| Height | 4.5 in |
| Weight | 6.34 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Net Lit-Ion Y/N | Yes |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | ANSI Safety Listing |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Adjustable Depth | Yes (Tools Not Required) |
| Bare Tool | Yes |
| Case Type | N/A (no case) |
| Engine | Brushless |
| Fastener Length | 2.125 |
| Firing Mode | Full Sequential |
| Gauge | 18 |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Work Light | Yes |
| Kit | No |
| Loading Type | Coil |
| Maximum Fastener Size | 2-1/8 in |
| Maximum Length | 2.125 In |
| Minimum Fastener Size | 5/8 in |
| Minimum Length | 0.625 In |
| Multi-Purpose | Single Purpose |
| Nail Gauge | 18 gauge |
| Nail Gun Angle | 0 degree |
| Nailer Features | No Features |
| Nails Per Charge | 1200 |
| Range | 18 Gauge |
