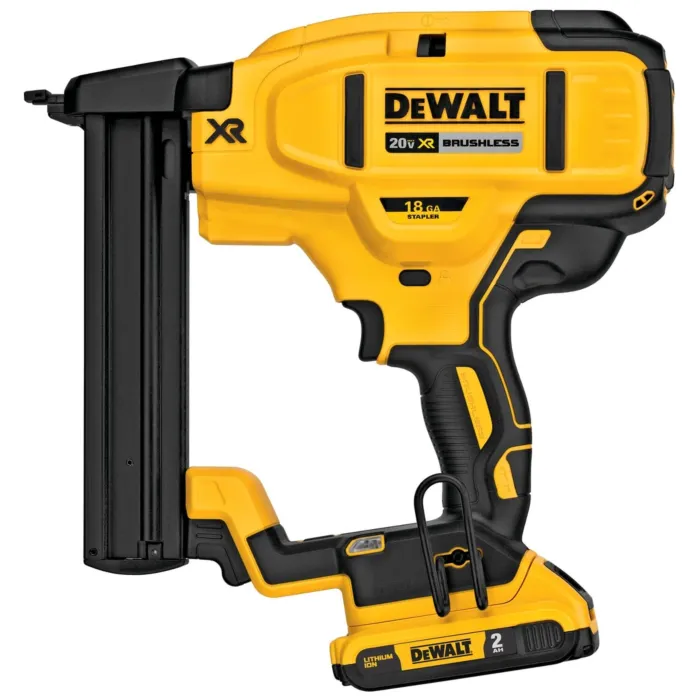

20V MAX* XR 18 Gauge Cordless Narrow Crown Stapler (Kit)
SKU: DCN681D1
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$399.99
$359.99
Features
Specifications
Downloads
The DEWALT DCN681 18 Gauge Narrow Crown Stapler drives 18 Gauge 1/4 in. narrow crown staples from 1/2 in. to 1-1/2 in. which makes it ideal for cabinetry, furniture, paneling, and flooring underlayment. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN681 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Brushless motor maximizes runtime and durability
- Tool-free selectable trigger for sequential or contact actuation modes
- Tool-free depth adjustment for precise countersinking of staples
- Low nail lockout prevents dry firing and unwanted marks on the work material
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Bottom Load magazine for easy loading and removal of jammed fasteners
- Compatible with all DEWALT 20V MAX batteries
- Yes
| Brand | DEWALT |
|---|---|
| UPC | 885911482240 |
| Store Location (Lititz, PA) | Aisle 28, Section N6 |
| Package Length (in) | 18.72" |
| Package Width (in) | 11.12" |
| Package Height (in) | 11.12" |
| Manufacturer Part Number | DCN681D1 |
| Country of Origin | Mexico |
| Length | 18.187 in |
| Width | 12.187 in |
| Height | 5.82 in |
| Weight | 10.65 lbs |
| Power Source | Battery |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | Yes |
| Battery Type | 20V MAX Lithium Ion |
| Battery Qty | 1 |
| Battery Weight | 0.8 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 2 Ah Ah |
| Watt Hours | 40 |
| Net Lit-Ion Y/N | Yes |
| Charger Included | Yes |
| Charger Type | Wall Mountable Charging Base |
| Battery Required | Yes |
| Charge Time | 60 |
| Number Of Batteries Required | 1 |
| Rechargeable | Yes |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Hazmat | Li-Ion (<101 WH) |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Hazmat Code | A1 |
| Bare Tool | No |
| Case Type | Hard |
| Crown Size | 1/2" to 1-1/2" In |
| Engine | Brushless |
| Fastener Length | 1/2" to 1-1/2" |
| Firing Mode | Full Sequential |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | SET |
| Kit | Yes |
| Maximum Fastener Size | 1-1/2 in |
| Minimum Fastener Size | 1/2 in |
| Multi-Purpose | Single Purpose |
| Nailer Features | No Features |
| Range | 18 gauge |
| Product Finish | Yellow/Black |
