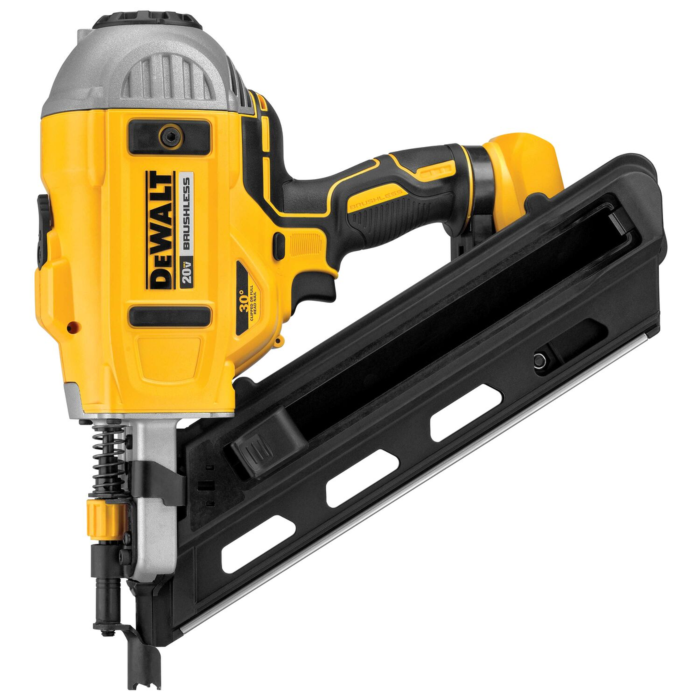

DEWALT 20V MAX* Cordless 30° Paper Collated Framing Nailer
SKU: DCN692B
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$369.99
Features
Specifications
Downloads
The 20V MAX Cordless 30 degree Paper Collated Framing Nailer drives nails from 2-inch to 3-1/2-inch With long runtime and powerful versatility, this nailer is built to handle tough jobsite duty. DEWALT 20V framing nailer features our upgraded engine design for increased power and drive quality compared to previous DEWALT cordless nailers. Its compact shape, well-balanced design, and easy-to-operate features make it an efficient, highly productive tool in your team's hands.
- Dual-speed motor optimized to drive a wide range of fasteners for a variety of applications
- Tool-free selector switch for sequential or bump fire modes
- Tool-free depth adjustment for precise nail placement
- Stall release lever to reset driver blade in the event of a jam
- Adjustable Rafter Hook
- Easy access to the nosepiece for removal of jammed nails
- Dry fire lock out prevents tool from firing when nails are low
- 33° magazine holds up to 55 paper collated nails
- Capable of driving 3-1/2 in. fasteners into dense lumber
- Yes
| Brand | DEWALT |
|---|---|
| UPC | 885911349000 |
| Store Location (Lititz, PA) | Aisle 28, Section N6 |
| Package Length (in) | 15.25" |
| Package Width (in) | 5.88" |
| Package Height (in) | 5.88" |
| Manufacturer Part Number | DCN692B |
| Country of Origin | Mexico |
| Length | 15.25 in |
| Width | 5.4 in |
| Height | 13.25 in |
| Weight | 9.25 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | ANSI Safety Listing | CSA Certified |
| Claims Needed | Yes |
| Adjustable Depth | Yes (Tools Not Required) |
| Bare Tool | Yes |
| Case Type | N/A (no case) |
| Collation | Strip |
| Engine | Brushless |
| Fastener Length | 3.5 |
| Firing Mode | Full Sequential |
| Housing Material | Plastic |
| Impacts / Blows / Blasts Per Min | 4600 |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Work Light | Not Featured |
| Loading Type | Strip |
| Magazine Angle | 33.0 |
| Magazine Capacity | 2000 |
| Maximum Fastener Size | 3-1/2 in |
| Maximum Length | 3.5 In |
| Minimum Fastener Size | 2 in |
| Multi-Purpose | Single Purpose |
| Nail Gauge | NA |
| Nail Gun Angle | 30 degree |
| Nailer Features | No Features |
| Nails Per Charge | 5000 |
| Range | .113 - .131 |
| Uncertainty K1 (Vibration) | 2 |
