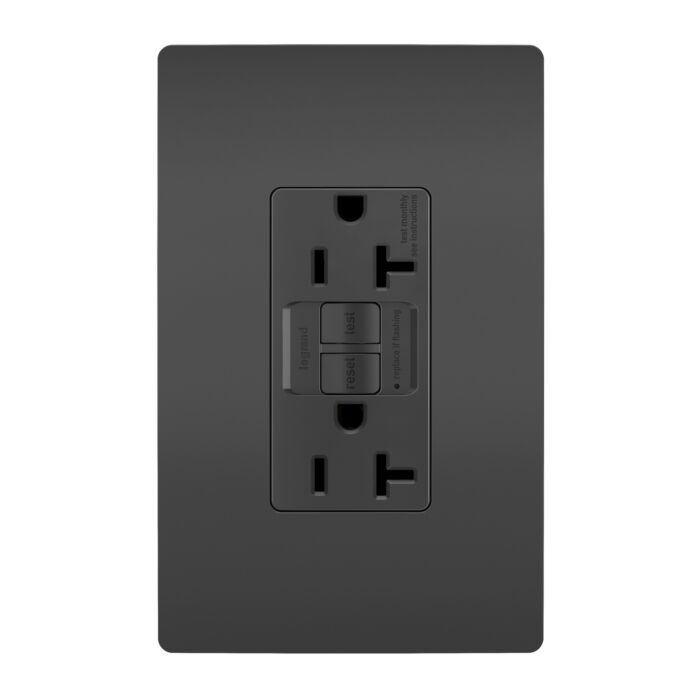

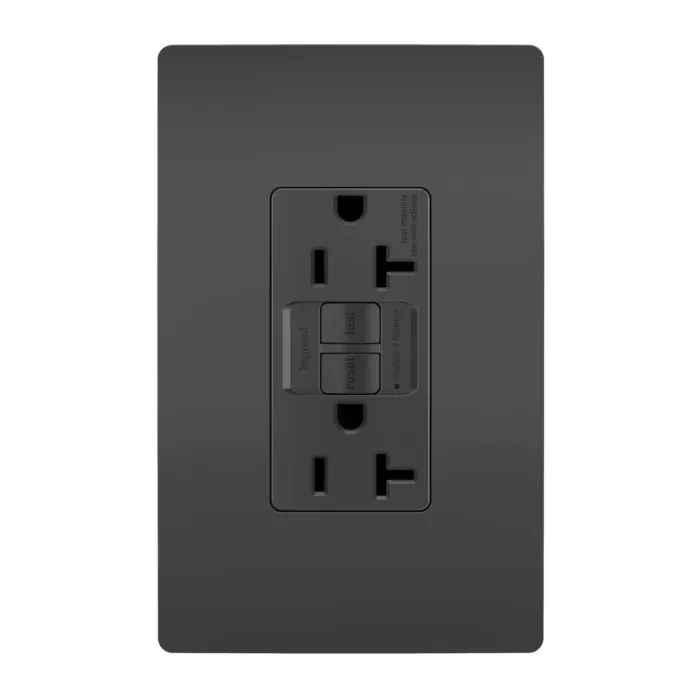

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances and in commercial settings, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless wall plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
- Protects against shock caused by ground-fault occurrences
- Conducts an industry-leading automatic self-test every 3 seconds
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected
- Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect
- Replaces any standard receptacle with ease, in as little as 10 minutes
- Features durable, high-impact resistant thermoplastic construction
- 10kA short circuit rating
- 20 Amp feed-thru capacity
- Indicator light flashes to signal when it should be replaced
| Brand | Pass & Seymour |
|---|---|
| Date Added | Jan 11, 2026 |
| UPC | 785007035766 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 2.00" |
| Package Width (in) | 1.75" |
| Package Height (in) | 1.75" |
| Manufacturer Part Number | 2097TRBKCCD4 |
| Color | Black |
| Finish | Matte |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Product Line | Pass & Seymour |
| Country Of Origin | China |
| Features | Self-Test |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Outlet Type | GFCI, Tamper-Resistant |
| Warranty Type | 1-Year Limited Warranty |
| Standard | cULus, UL Listed, FSUL |
| UPC Number | 785007035766 |
| Product Depth US | 1.13" |
| Product Height US | 4.2" |
| Product Width US | 1.73" |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Amperage | 20 A |
| Connection Location | Back and Side |
| Wire Connection Type | Internal Pressure Plates, Screw Terminals |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Frequency Rating | 60 Hz |
| Indoor/Outdoor | Indoor |
| Is Tamper-Resistant | Yes |
| Mounting Type | Box |
| NEMA Configuration Code | 5-20R |
| Number of Gangs | 1 |
| Number of Poles | Double Pole |
| Number of Wires | 3 |
| Voltage | 125.0 V |
