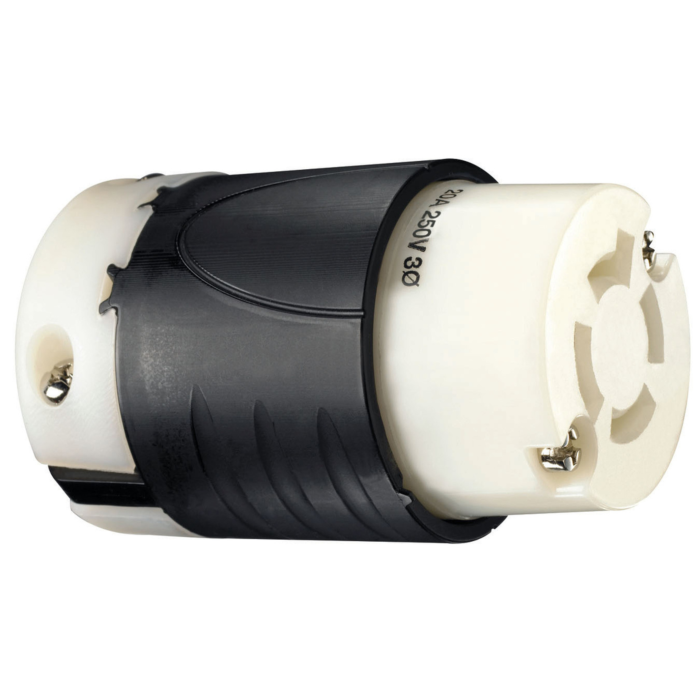

20A NEMA Connector L1520 - Black Back, White Front Body
SKU: EL1520C
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
Downloads
Every component of these locking connectors are built to offer the lowest installed cost and maximum durability. Quick-threaded assembly screws install four times faster than cmpetitive products and backed-out screws come ready to wire. Rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy contacts are all features of this premium Turnlok L1520C 4-Wire 20A 3-Phase 250V connector.
- cULus Listed
- Federal Spec Listed
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating.
- New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
- Cord Diameter: 0.225 to 1.150 Inches
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007152012 |
| Store Location (Lititz, PA) | Aisle 08, Section C1 |
| Package Length (in) | 2.44" |
| Package Width (in) | 2.44" |
| Package Height (in) | 2.44" |
| Manufacturer Part Number | L1520C |
| Length | 3.33 in |
| Color | Black |
| Width | 2.2 in |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Flanged | No |
| Amperage | 20.0 A |
| Voltage | 250.0 V |
| Standard | File Number E146159 |
| Number of Wires | 4.0 |
| Warranty Type | 1-Year |
| Indoor/Outdoor | Indoor |
| Type | Locking Connector |
| Connector Style | Locking |
| Number of Poles | Double Pole |
| Features | Corrosion Resistant |
| Application Sector | Industrial |
| Connection | TurnLok Receptacle |
| NEMA Configuration Code | L15-20R |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Special Features | Locking Device, impact resistant |
| Environmental Conditions | Flamability Rating UL94 V2 |
