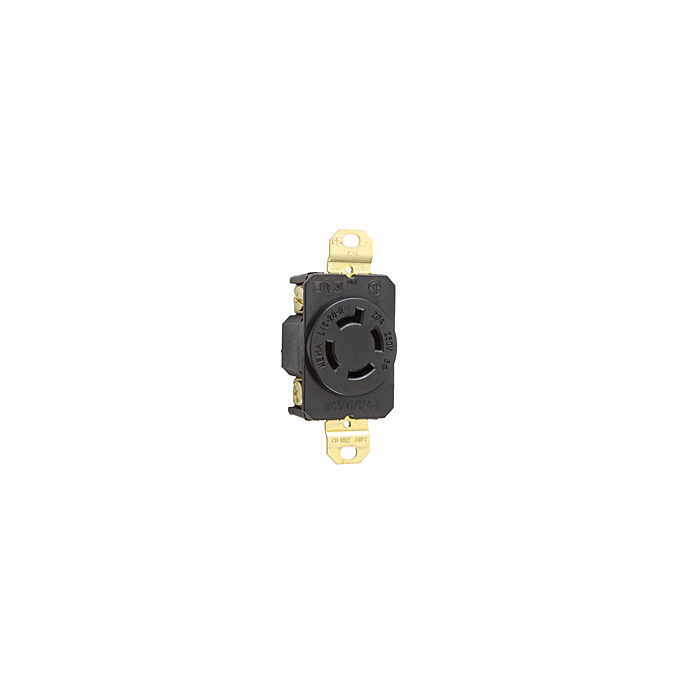

20A 250V NEMA L1520 Single Receptacle, 4-Wire 3-Phase, Black
SKU: EL1520R
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.99
Features
Specifications
Downloads
20A 250V NEMA L1520 Single Receptacle, 4-Wire 3-Phase, Black
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- cULus Listed
- Federal Spec Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007152050 |
| Store Location (Lititz, PA) | Aisle 08, Section C2 |
| Package Length (in) | 2.19" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | L1520R |
| Depth | 1.19 in |
| Amperage | 20.0 A |
| Height | 2.29 in |
| Standard | FEDSPEC |
| Width | 1.61 in |
| Country of Origin | Mexico |
| Voltage | 250.0 V |
| Number of Wires | 4.0 |
| Outlet Type | Locking |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Brass Mounting Strap |
| Number of Receptacles | 1.0 |
| Application Sector | Industrial |
| NEMA Configuration Code | L15-20R |
| Connection Location | Back and Side |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Color | Black |
| Finish | Matte |
| Product Line | Pass & Seymour |
