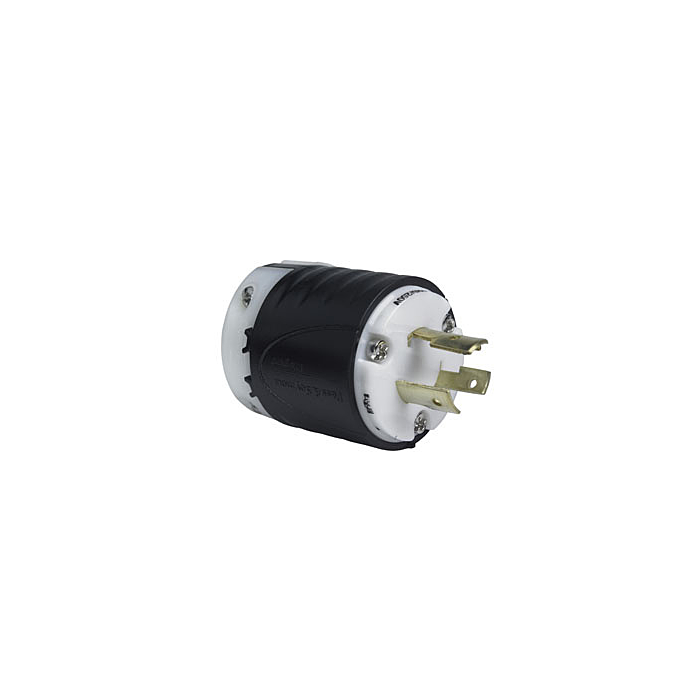

20A NEMA Plug L1020 - Black Back, White Front Body
SKU: EL1020P
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.49
Features
Specifications
Downloads
20A NEMA Plug L1020 - Black Back, White Front Body
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
- Raised ribs provide non-slip gripping profile for turning to lock and unlock.
- Double dovetail design provides superior protection against cord pull-out forces.
- Impact- and corrosion-resistant durable nylon 6 shell material.
- Rounded back contour reduces snags and hang-ups on the job site.
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
- Visible stamped NEMA configuration and device rating. New-design external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
- Federal Spec Listed
- UL Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007102048 |
| Store Location (Lititz, PA) | Aisle 08, Section C1 |
| Package Length (in) | 2.44" |
| Package Width (in) | 2.44" |
| Package Height (in) | 2.44" |
| Manufacturer Part Number | L1020P |
| Length | 2.57 in |
| Special Features | Turnlock, locking device, quick thread assembly, rounded back contour, impact & corrosion resistant, new design external cord grips |
| Width | 2.2 in |
| Color | Black |
| Country of Origin | Mexico |
| Product Line | Pass & Seymour |
| Type | Plug |
| Flanged | No |
| Amperage | 20.0 A |
| Standard | FEDSPEC |
| Features | Locking |
| Voltage | 125/250 V |
| NEMA Rating | L10-20P |
| Number of Wires | 3.0 |
| Number of Phases | 3.0 |
| Warranty Type | 1-Year |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Connector Style | Locking |
| Application Sector | Commercial |
| NEMA Configuration Code | L10-20P |
| Terminal Accommodation | #18 AWG - #10 AWG |
