DEWALT

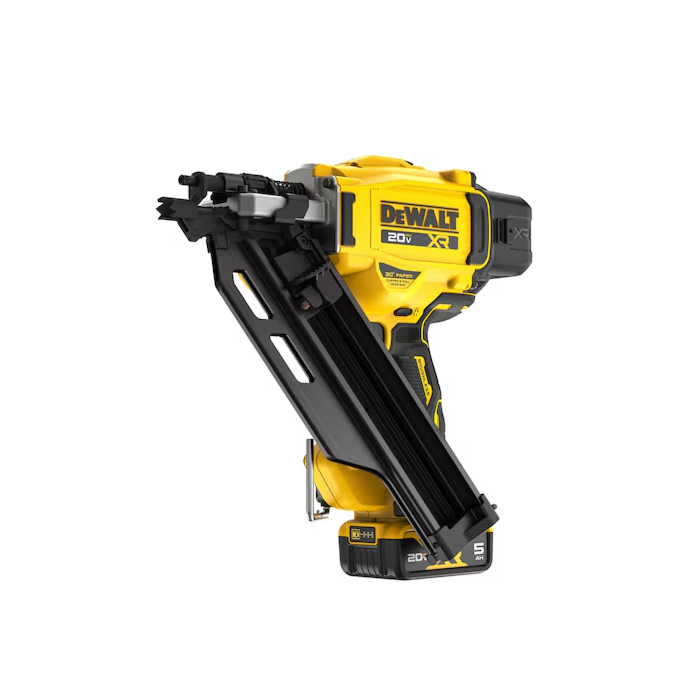

20V MAX 30° Paper Tape Framing Nailer Kit

SKU: DCN930P1
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
This product must be picked up in-store.
Features chevron-down chevron-up
The DCN930 has been engineered to deliver more power, more productivity, and more durability than any previous DEWALT framing nailer. A DEWALT XR Brushless motor enables gas free true cordless operation, the new internals deliver more power to drive nails more consistently and faster, while the new tougher driver blade and magnesium magazine improve durability on the jobsite. Ideal for a wide range of first fix applications such as timber framing, stud work, and roof battens, the DCN930 fires angled nails from 50 to 90mm. The optimized size allows this nailer to fit between 400mm joist centers which improves ease of use along with the increased depth range adjustment, improved magazine loading system and metal rafter hook. Two operating modes allow you to choose from bump for precision placement and sequential for faster application speeds and up to 2 nails per second.
  • Cordless convenience saves up to 20 min. daily in setup and clean-up time
  • Install up to 530 sq. ft of subflooring per charge and complete up to 100 ft of wall framing per charge
  • Finish a wide-range of applications with an powerful brushless motor
  • Drive nails up to 72% more sub-flush than previous generation
  • High-strength magnesium magazine for durability
  • Lightweight design weighing only 8.65 lbs
  • Align, grip, and drive nails at aggressive angles with the redesigned nose specifically built for toe-nailing applications
  • Active Flywheel Technology eliminates ramp-up time between shots
  • Show-up and get right to work with this cordless nailer requiring no compressors or hoses
  • Track and manage this Chip-Ready™ tool in the TOOL CONNECT™ system (chip sold separately)
  • Take on tough jobs with up to a 3-1/2" nail capacity
  • Limit maintenance delays with field serviceable springs and driver blade
Specifications chevron-down chevron-up
Brand DEWALT
Date Added Dec 4, 2025
UPC 885911901628
Store Location (Lititz, PA) Aisle 28, Section N6
Manufacturer Part Number DCN930P1
Battery Capacity 5 Ah
Magazine Angle 30 Degree Paper Tape
Magazine Loading Bottom Load
Nail Diameter 0.113-0.131"
Nail Length 2-3.5"
Power Source Battery
Product Height 13.2"
Product Length 13.9"
Product Weight 8.65 lb
Product Width 5.6"
Cordless Vs. Corded Cordless
Voltage 20V
Battery Type 20V MAX Lithium Ion
Watt Hours 120
Includes (1) Nailer | (1) DCB205 Battery | (1) DCB1104 Charger | (1) Belt Hook and Screw | (1) No Mar Tip | (1) Manual | (1) Hex Wrench | (1) Soft Bag
