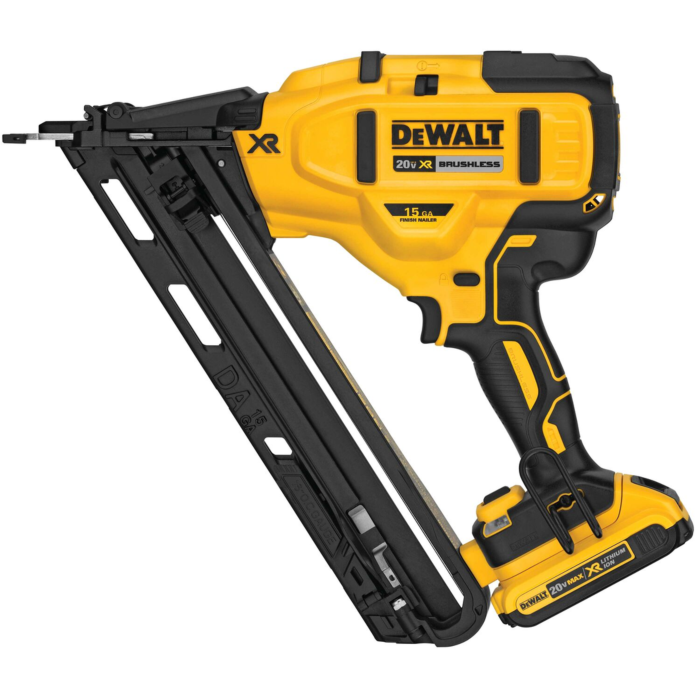

20V MAX* XR 15 Gauge Cordless Angled Finish Nailer Kit
SKU: DCN650D1
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$449.99
$404.99
Features
Specifications
Downloads
The DEWALT DCN650 15 Gauge Angled Finish Nailer drives 15 Gauge angled finish nails from 1-1/4" to 2-1/2" which makes it ideal for fastening crown molding, casing, baseboards, and hardwood floor installation. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN650 is ready to go to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Brushless motor maximizes runtime and durability
- Micro nose improves line of sight and accuracy of nail placement (Compared to DEWALT DC628)
- Tool-free selectable trigger for sequential or contact actuation modes
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Inline magazine provides easy use in multiple orientations and in tight spaces
- Yes
| Brand | DEWALT |
|---|---|
| UPC | 885911489768 |
| Store Location (Lititz, PA) | Aisle 28, Section N6 |
| Package Length (in) | 18.19" |
| Package Width (in) | 13.56" |
| Package Height (in) | 5.69" |
| Manufacturer Part Number | DCN650D1 |
| Country of Origin | Mexico |
| Length | 18.25 in |
| Width | 13.562 in |
| Height | 5.87 in |
| Weight | 10.5 lbs |
| Power Source | Battery |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | Yes |
| Battery Type | 20V MAX Lithium Ion |
| Battery Qty | 1 |
| Battery Weight | 0.8 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 2 Ah Ah |
| Watt Hours | 40 |
| Net Lit-Ion Y/N | Yes |
| Charger Included | Yes |
| Charger Type | Wall Mountable Charging Base |
| Battery Required | Yes |
| Charge Time | 60 |
| Number Of Batteries Required | 1 |
| Rechargeable | Yes |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Hazmat | Li-IonBatt <101 WH |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Claims Needed | Yes |
| Hazmat Code | A1 |
| Adjustable Depth | Yes (Tools Not Required) |
| Case Type | N/A (no case) |
| Engine | Brushless |
| Fastener Length | 2.5 |
| Firing Mode | Full Sequential |
| Gauge | 15 |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | SET |
| Integrated Work Light | Yes |
| Loading Type | Coil |
| Maximum Fastener Size | 2-1/2 in |
| Maximum Length | 2.5 In |
| Minimum Fastener Size | 1-1/4 in |
| Minimum Length | 1.25 In |
| Multi-Purpose | Single Purpose |
| Nail Gauge | 15 gauge |
| Nail Gun Angle | 34 degree |
| Nails Per Charge | 1200 |
| Range | 15 gauge |
