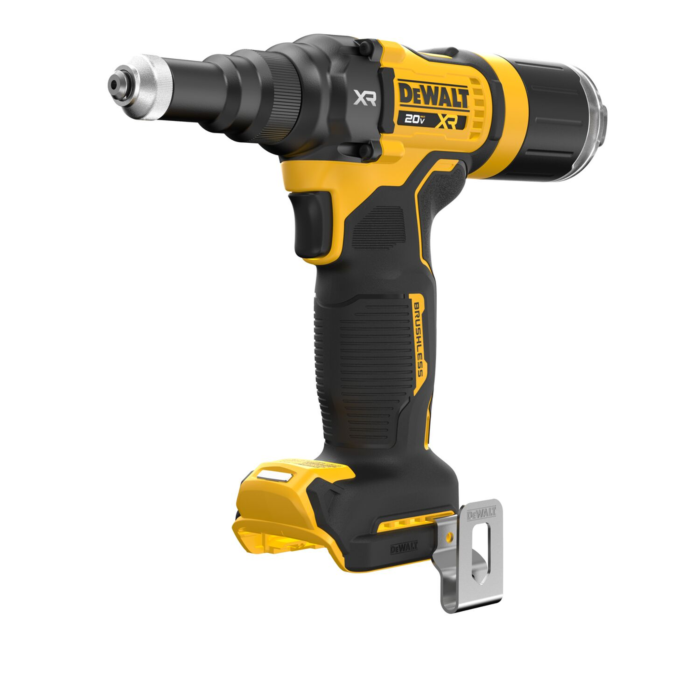

The 20V MAX XR Brushless Cordless 3/16'" Rivet Tool is lightweight yet powerful with a brushless motor that delivers up to 2,100 lbf of pulling force for installing aluminum, steel, and stainless steel blind rivets up to 3/16". With the capability to pull 800 rivets per charge, in addition to a tool-free nose piece change and on-board nose piece storage, this cordless rivet tool maximizes productivity on the jobsite. Battery and charger sold separately.
- BRUSHLESS MOTOR delivers up to 2,100 lbf of pulling force for fastening rivets, including those made of stainless steel
- 800 RIVETS PER CHARGE to maximize productivity on the jobsite
- DESIGNED FOR EASE OF USE with tool-free nose change and on-board nose piece storage
- COMPATIBLE WITH MUTIPLE SIZE RIVETS including 3/32", 1/8", 5/32", and 3/16" rivets
- CAPABLE OF PULLING aluminum, steel, and stainless steel blind rivets
- ON-BOARD MANDREL COLLECTOR designed to collect and stores loose mandrels
- 0.98" STROKE LENGTH for fastening rivets in one stroke
- BRIGHTEN WORK AREA with an integrated LED work light for enhanced visibility in dimly lit areas
Brand | DEWALT |
---|---|
UPC | 885911896252 |
Store Location (Lititz, PA) | Aisle 22, Section M5 |
Package Length (in) | 9.57" |
Package Width (in) | 3.35" |
Package Height (in) | 8.31" |
Manufacturer Part Number | DCF403B |
Country of Origin | China |
Height | 8.307 in |
Length | 9.700 in |
Width | 3.346 in |
Weight | 4.156 lbs |
Power Source | NON-ENERGY USING |
Cordless Vs. Corded | Cordless |
Voltage | 20 V V |
Battery Included | No |
Battery Type | 20V MAX* Lithium Ion |
Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
Charger Included | No |
Battery Required | Yes |
Number Of Batteries Required | 1 |
Disclaimer | **with 3/16" stainless steel rivets and DCB203 battery (sold separately) | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | †Using DCB203 battery, sold separately |
Prop 65 Generic Warning | Yes |
Warranty | 3LW1YS90D |
Bare Tool | Yes |
Case Type | N/A (no case) |
Compatibility | 3/32", 1/8", 5/32", and 3/16" |
Grip Design | Rubber |
Handle Length | 10.5 |
Handle Material | Plastic |
Individual Vs. Set (Syndigo) | INDIVIDUAL |
Mandrel Wrench Included | No |
Rivet Gun Nose Reach | 0.98 |
Rivets Included | No |
Size (String) | 3/32", 1/8", 5/32", and 3/16" |
Swivel | No |
