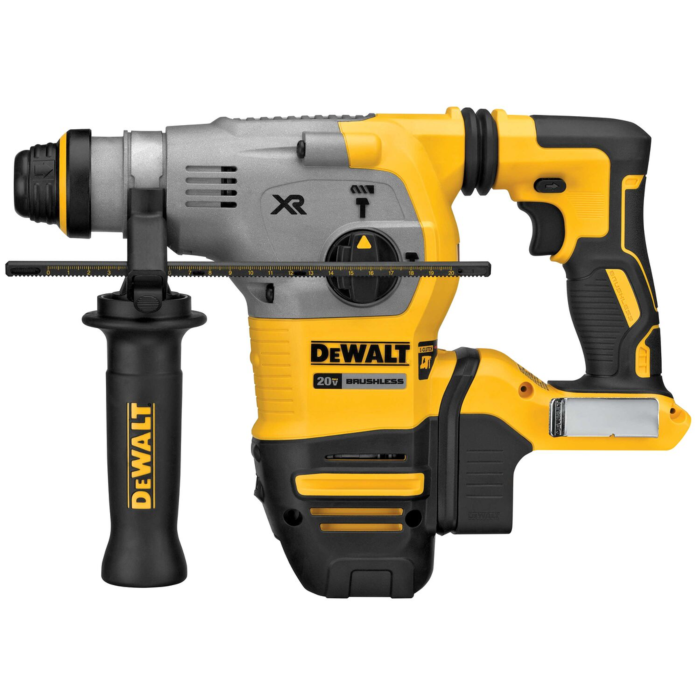

20V MAX* XR Brushless Cordless 1-1/8 in. SDS PLUS L-Shape Rotary Hammer (Tool Only)
SKU: DCH293B
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$499.99
Features
Specifications
Complete large-diameter hole drilling with the 20V MAX XR 1-1/8 in. L-Shape Rotary Hammer powered by a brushless motor and a durable German-engineered mechanism. Featuring a balanced design, this high-performance hammer delivers 3.5 Joules of impact energy. Built with safety in mind, this tool has the SHOCKS ACTIVE VIBRATION CONTROL System and the Anti-Rotation E-CLUTCH System. Get OSHA Table 1 Compliance when used with the DWH304DH On Board Extractor.
- 3 modes: selectable drilling, percussion, and chiseling
- 3.5j impact energy (epta 05/2009): for faster drilling and demolition
- Blows per minute: 0-4480
- Brush-free motor: less maintenance and longer life
- No-load speed: 0-1000 RPM
- Optimal drilling in concrete: 5/8" - 7/8" (16mm - 22mm)
- Shocks: active vibration control, part of the perform & protect system, reduces vibration for greater grip comfort and productivity
- * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
- Yes
- (1) 360° Side handle | (1) Depth rod | (1) DCH293 Rotary hammer
| Brand | DEWALT |
|---|---|
| UPC | 885911477499 |
| Store Location (Lititz, PA) | Aisle 28, Section S1 |
| Package Length (in) | 15.35" |
| Package Width (in) | 4.30" |
| Package Height (in) | 4.30" |
| Manufacturer Part Number | DCH293B |
| Country of Origin | Czechia |
| Height | 10.630 in |
| Length | 15.500 in |
| Width | 4.000 in |
| Weight | 9.150 lbs |
| Product Type | ROTARY HAMMER DRILL |
| Product Material Group | METAL |
| Product Primary Material | Metal |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Amp Hours | 6 Ah Ah |
| Watt Hours | 120 |
| Net Lit-Ion Y/N | Yes |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Warranty | 3LW1YS90D |
| App Compatibility | No |
| Bare Tool | Yes |
| Bluetooth Compatibility | No |
| Case Type | N/A (no case) |
| Chuck Size | 1-1/8 in |
| Chuck Type | SDS-Plus |
| Floor Loaded | No |
| Forward And Reverse Switch Included | Yes |
| Handle Material | Plastic |
| Handle Type | D-Handle |
| Housing Material | Plastic |
| Impacts / Blows / Blasts Per Min | 4480 |
| Integrated Work Light | Not Featured |
| Keyless/Keyed | Keyless |
| Kit | Yes |
| Maximum Capacity Concrete | 0.875 In |
| Maximum Chuck Size | 1-1/8-in |
| Maximum Speed | 1000 RPM Rpm |
| Reversible | No |
| Right Angle | No |
| Side Handle Included | No |
| Thin Wall Bit Capactiy | Yes |
| Variable Speed | Yes |
| Wifi Compatibility | No |
| Works With Android | No |
| Works With Ios | No |
