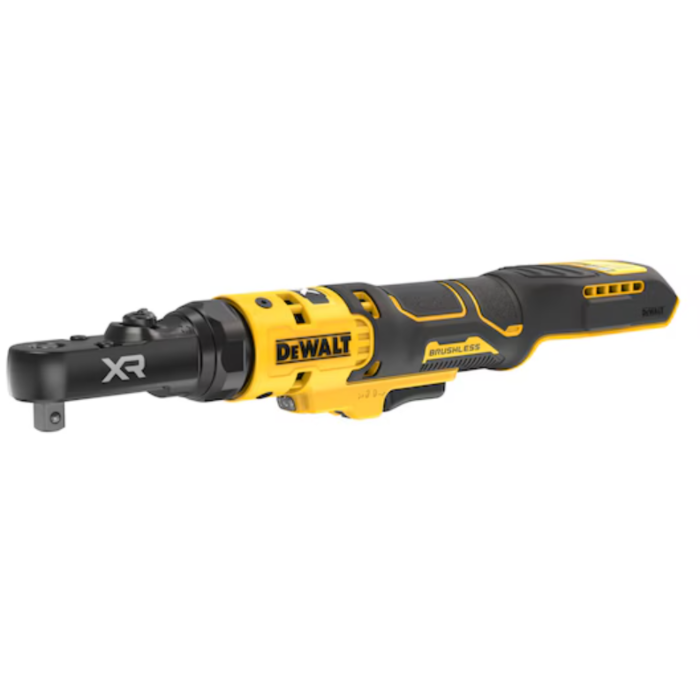

20V MAX* XR® Brushless Cordless 1/4 in. & 3/8 in. Sealed Head Ratchet (Bare Tool)
SKU: DCF520B
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$279.99
Features
Specifications
Complete challenging applications with the versatile 20V MAX* XR® Brushless Cordless 1/4 in. & 3/8 in. Sealed Head Ratchet (battery and charger sold separately). Dewalt's highest speed 20V MAX* ratchet* delivers a no-load speed up to 450 rpm and up to 50 ft-lb of max torque. Take advantage of the interchangeable anvil design to quickly swap between 3/8" square drive, 1/4" square drive, and 1/4" low-profile hex anvils for versatility in a wide range of applications. Featuring a sealed-head, a trigger lock, and a built-in LED, this next generation XR® tool is engineered to take on tough fastening jobs.
Includes:
(1) DCF520 20V MAX* XR® Brushless Cordless 1/4" & 3/8" Sealed Head Ratchet
(1) 1/4" Square Drive Anvil
(1) 3/8" Square Drive Anvil
(1) 1/4" Low Profile Hex Anvil
- Complete challenging applications quickly with a no-load speed up to 450 rpm
- Interchangeable anvil design allows you to quickly swap between 3/8" square drive, 1/4" square drive, and 1/4" low-profile hex anvils
- Fasten and remove difficult or stubborn bolts with up 50 ft-lbs of max torque
- Change directions in tight spaces with ease utilizing a sealed-head design that offers easy access to the forward/reverse switch
- Apply the integrated trigger lock to avoid accidental tool activations
- Help illuminate your work surface with a built-in LED for extra visibility
- Compatible with DEWALT® 20V MAX* batteries (sold separately)
| Brand | DEWALT |
|---|---|
| Date Added | Feb 16, 2026 |
| UPC | 198706011595 |
| Store Location (Lititz, PA) | Aisle 22, Section M5 |
| Package Length (in) | 16.60" |
| Package Width (in) | 2.91" |
| Package Height (in) | 2.99" |
| Manufacturer Part Number | DCF520B |
| Anvil Size | 1/4", 3/8" |
| Has FW / REV Switch? | Yes |
| Has LED Light? | Yes |
| Is Battery Included? | Yes |
| Is Brushless? | Yes |
| Max. Torque | 67 Nm |
| No Load Speed | 0-450 rpm |
| Tool Length | 14-1/4" |
| Tool Weight | 2.4 lb |
