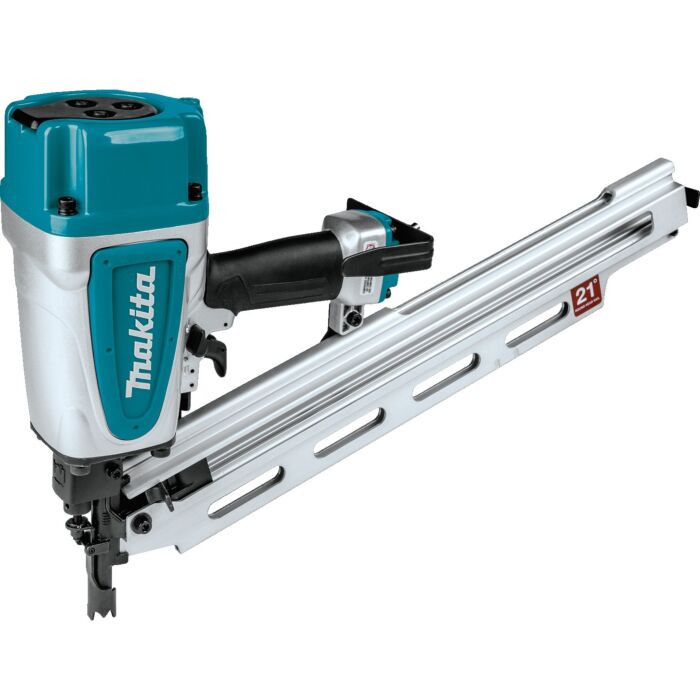

The 21º Full Round Head 3-1/2" Framing Nailer (model AN924) combines durable construction and robust performance with ease-of-use features for wood framing applications. The AN924 is engineered for a range of applications including framing walls, floors and roofs, as well as construction of roof and floor decking, floor and wall sheathing/siding, and sub-flooring. It is ideal for framers, roofers and carpenters. The AN924 drives 21º plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter. It has a 2-mode selector switch (bump, sequential) for increased convenience. The AN924 has a lightweight design (only 8.3 lbs.) with durability features that include a heat-treated S7 steel driver blade, a solid aluminum top-loading magazine, and a nail lock-out mechanism that protects the tool and work surface from dry-fires. Added features include tool-less depth adjustment for flush or countersink nailing, added tool hook, and an ergonomic rubberized grip.
Includes: Pneumatic nailer oil, safety glasses, air fitting, and hook
- Drives 21º plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter
- "Tool-less" depth adjustment engineered for more precise flush and countersink nailing
- Heat treated S7 steel driver blade for durability
- Nail lock-out mechanism protects tool and work surface from dry-fires
- Sharp, pronounced spurs grip wood for controlled nailing at an angle
- Lightweight design at only 8.3 lb
- Front magazine cover for additional nail support
- Faster nail driving speed for maximum performance
- 2-mode selector switch allows operator to select contact or sequential nailing options
- Reversible hook allows tool to remain close by
- Large capacity air chamber for increased power to drive nails up to 3-1/2" x .148 in diameter
- Solid top-loading aluminum magazine for longer life
- Rubber bumpers protect the tool and surface from damage
- Ergonomic rubberized grip for increased comfort on the job
- Minimum recommended air delivery of 4.3 SCFM @ 90 psi
| Brand | Makita |
|---|---|
| UPC | 088381857093 |
| Store Location (Lititz, PA) | Aisle 28, Section M5 |
| Package Length (in) | 12.00" |
| Package Width (in) | 3.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | AN924 |
| Country of Origin | China |
| Air Consumption (SCFM) | 4.3 |
| Dimensions (LxWxH) | 22" x 4-5/8" x 13-3/4" |
| Fastening category | Framing |
| Operating Air Pressure | 70 - 120 psi |
| Nail Size | 2"-3-1/2" .113"-.148" shank diameter plastic collated |
| Tool Hook Included | Yes |
| UPC Code | 088381-857093 |
| Power Type | Pneumatic |
| Inlet Size | 1/4" NPT |
| Shipping Weight | 11.75 lb |
| Air Fitting Included | Yes |
| Industrial Style Fitting Included | 1/4" NPT x 1/4" |
| Maximum Magazine Capacity | 73 |
| Net Weight | 8.3 lb |
| Warning | Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
