22 Watt LED HID Replacement - 80 CRI - 5000K - Type B - Ballast Bypass - Medium base - Economy Hi-Pro
SKU: S49391
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
Downloads

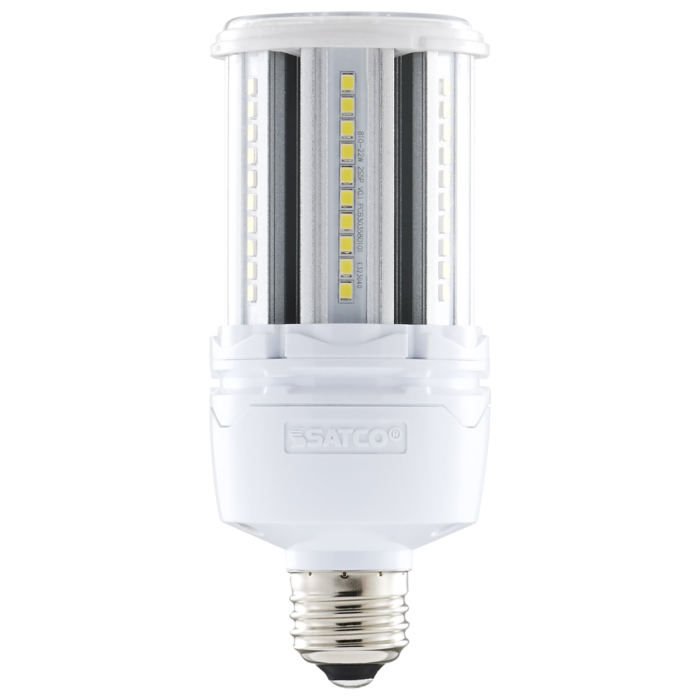

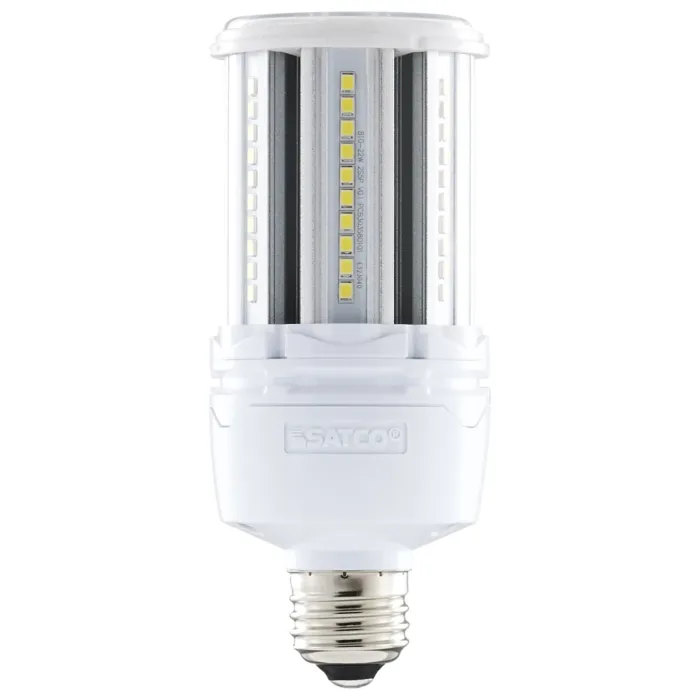

Satco's S49391 22-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. This versatile lamp has a corncob shape and delivers 35,000 hours of natural white light.
- High lumen per watt ratio
- Superior LED light output
- Rated for use in enclosed fixtures
- Advanced thermal management
- Suitable for use in damp locations
- Up to 35000 Hours of use
- 2kV built-in surge protection
- Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
- Ballast Bypass
- Not for use in vapor tight fixtures.
| Brand | Satco |
|---|---|
| UPC | 045923493911 |
| Store Location (Lititz, PA) | Aisle 11, Section D2 |
| Package Length (in) | 2.87" |
| Package Width (in) | 2.87" |
| Package Height (in) | 7.28" |
| Manufacturer Part Number | S49391 |
| Country of Origin | Malaysia |
| Weight | 0.77 lbs |
| Warranty | 3-Years |
| Amps | 0.220-0.079A |
| ANSI Base | E26 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 300 |
| Burning Position | Universal |
| CCT Selectable | No |
| CA Regulations | Exempt - >2600 Lumens |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Natural Light |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| DLC Approved | No |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | LED HID |
| HID Equiv | 100W |
| Avg Rated Hours | 35000 |
| Housing Color | White |
| Finish | White |
| Incandescent Equiv | 150W |
| Indoor Outdoor | Indoor, Outdoor |
| IP Rating | IP65 |
| Lamp Base | Medium |
| Lamp Filament | LED |
| Lamp Shape | Corncob |
| Lamp Ballast Type A/B/C | Type B |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 3036L |
| Material | Aluminum / Polycarbonate (PC) |
| Minimum Compartment Size | Length: 6 in. Width: 6 in. Height: 8.5 in. |
| MOD Decimal | 2.39 in. |
| MOL Decimal | 5.71 in. |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +55C (+131F) |
| Photocell | No |
| Power Factor | >0.9 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| Location Rating | Damp |
| Surge Protection | Built-in surge protection - 2KV |
| Technology | LED |
| Temperature (CCT) | 5000K |
| Three-Way | No |
| Volts | 120V-277V |
| Watts | 22W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
