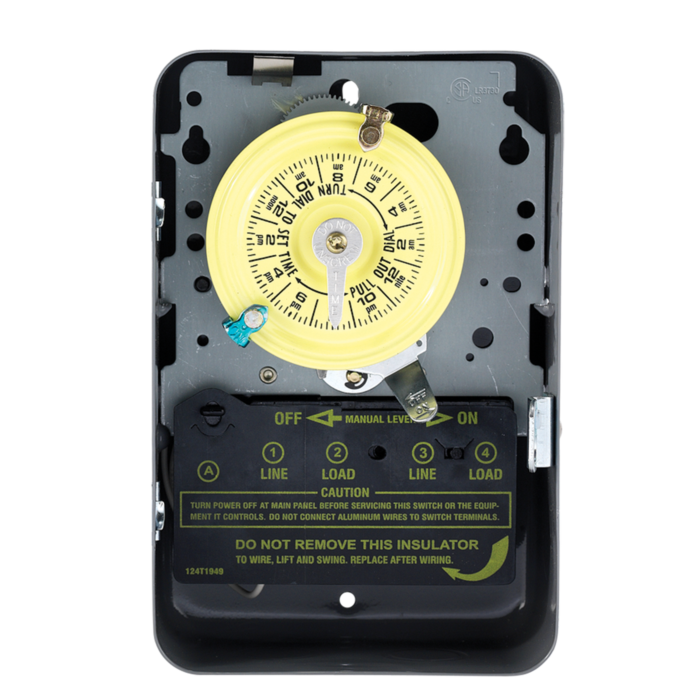

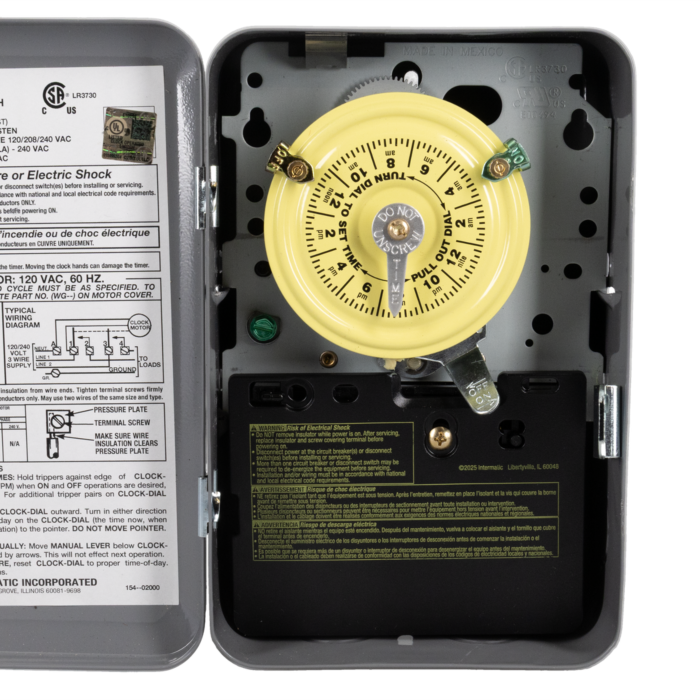

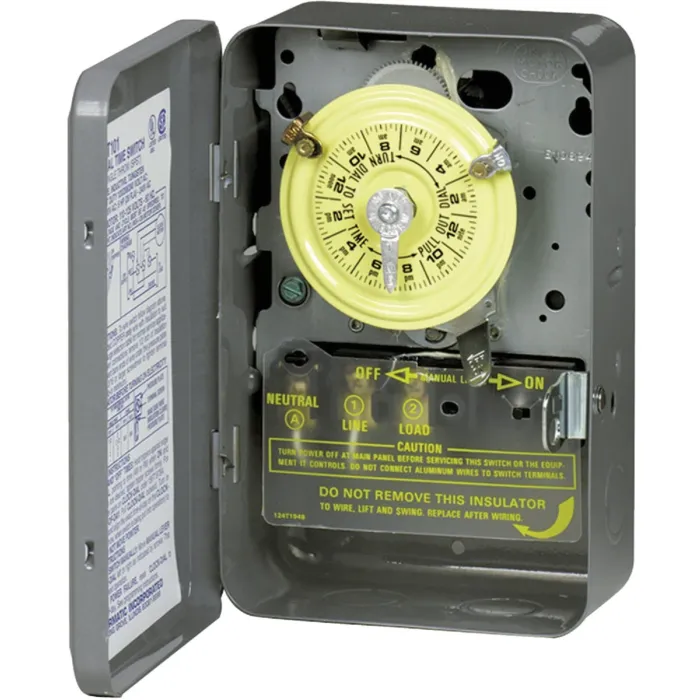

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
- Please see the Warning @ www.P65Warnings.ca.gov - Lead
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
- CSA Certification File Number -> C22.2-177; LR3730
Brand | Intermatic |
---|---|
UPC | 078275000049 |
Store Location (Lititz, PA) | Aisle 05, Section D4 |
Package Length (in) | 5.50" |
Package Width (in) | 3.50" |
Package Height (in) | 3.50" |
Manufacturer Part Number | T103 |
Country of Origin | Mexico |
Product Height | 7.875 in; 200 mm |
Product Depth | 3.4375 in; 87.3 mm |
Operating Temperature Min | -40°F; -40°C |
Operating Temperature Max | 130°F; 54°C |
Warranty Period | 1-Year limited |
Minimum On Off Time | 1 hour |
Maximum On Off Operations | 12 |
Skipper Wheel Operation Mode | Not Included |
Timing Interval | 1 hr |
Operation Mode | 24 hour |
UL Cerfication File Number | UL917 |
Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control |
Application Compatibilities | LED; HID |
Wire Size Min | #14 AWG |
Wiring Option | Terminals |
Input Voltage Ranges | 120 VAC, 60 Hz |
Wire Size Max | #8 AWG |
Number Of Circuits | 1 |
Enclosure Type | Indoor type 1 metal |
Switch Type | DPST |
Power Consumption Max W | 3 W |
Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
Number Of Trippers Included | 1 ON/1 OFF |
Has Manual Override CVL | Yes |
PDF Standards And Certifications | cULus; cCSAus; LED |
Pilot Duty Load Ratings | 1000 VA, 120-240 VAC, 60 Hz |
Electronic Ballast Load Ratings | 16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC |
Electronic Ballast Load Ratings Ranges | 16 A, 120-277 VAC |
Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz |
Tungsten Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
Resistive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
Inductive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
UL Certification | cULus |
CSA Certification | cCSAus |
Other Certifications | LED |
Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
