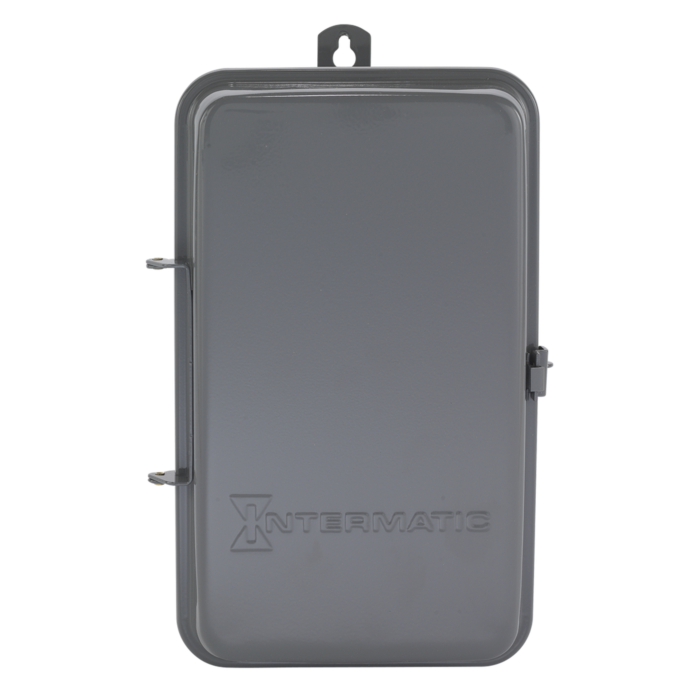

24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor/Outdoor Metal Enclosure, 1 Hour Interval
SKU: T101P | Location: Aisle 05, Section D4
$92.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Downloads

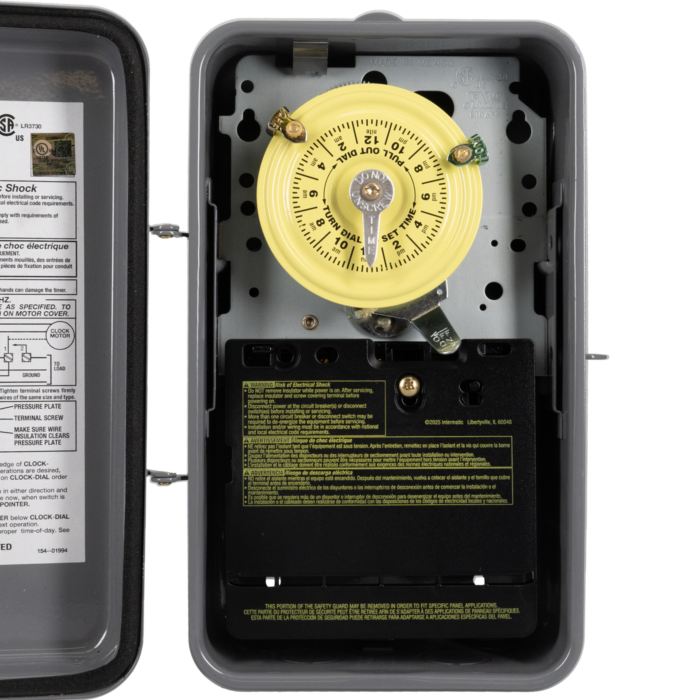

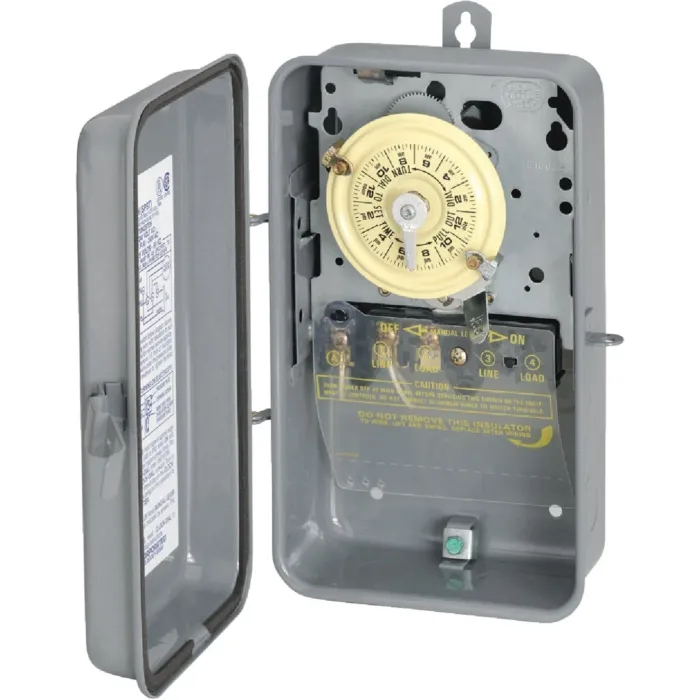

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
- CSA Certification File Number -> C22.2-177; LR3730
- Please see the Warning @ www.P65Warnings.ca.gov - Lead
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
| Brand | Intermatic |
|---|---|
| UPC | 078275000056 |
| Store Location (Lititz, PA) | Aisle 05, Section D4 |
| Package Length (in) | 10.00" |
| Package Width (in) | 6.40" |
| Package Height (in) | 3.80" |
| Manufacturer Part Number | T101R |
| Country of Origin | Mexico |
| Product Height | 10.125 in; 257.2 mm |
| Product Depth | 3.625 in; 92.1 mm |
| Operating Temperature Min | -40°F; -40°C |
| Operating Temperature Max | 130°F; 54°C |
| Warranty Period | 1-Year limited |
| Minimum On Off Time | 1 hour |
| Maximum On Off Operations | 12 |
| Skipper Wheel Operation Mode | Not Included |
| Operation Mode | 24 hour |
| UL Cerfication File Number | UL917 |
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control |
| Application Compatibilities | LED; HID |
| Wire Size Min | #14 AWG |
| Wiring Option | Terminals |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Wire Size Max | #8 AWG |
| Number Of Circuits | 1 |
| Enclosure Type | Indoor/outdoor type 3R metal |
| Switch Type | SPST |
| Power Consumption Max W | 3 W |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Number Of Trippers Included | 1 ON/1 OFF |
| Has Manual Override CVL | Yes |
| PDF Standards And Certifications | cULus; cCSAus; LED |
| Pilot Duty Load Ratings | 1000 VA, 120-240 VAC, 60 Hz |
| Electronic Ballast Load Ratings | 16 A, 120 VAC |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz |
| Tungsten Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Resistive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| Other Certifications | LED |
