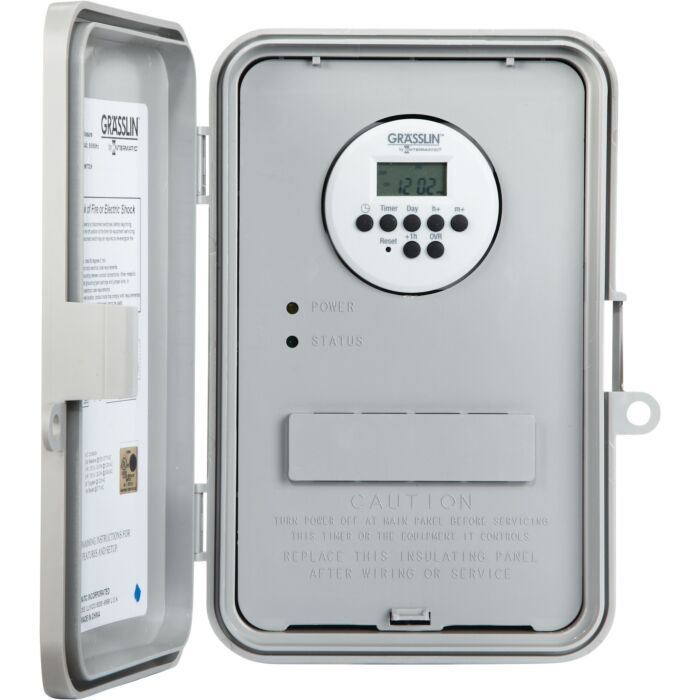

24-Hour or 7-Day 120-277V Electronic Time Control, 40A, Type 3R Outdoor Plastic Enclosure
SKU: GM40AVE | Location: Aisle 05, Section D4
$109.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Downloads

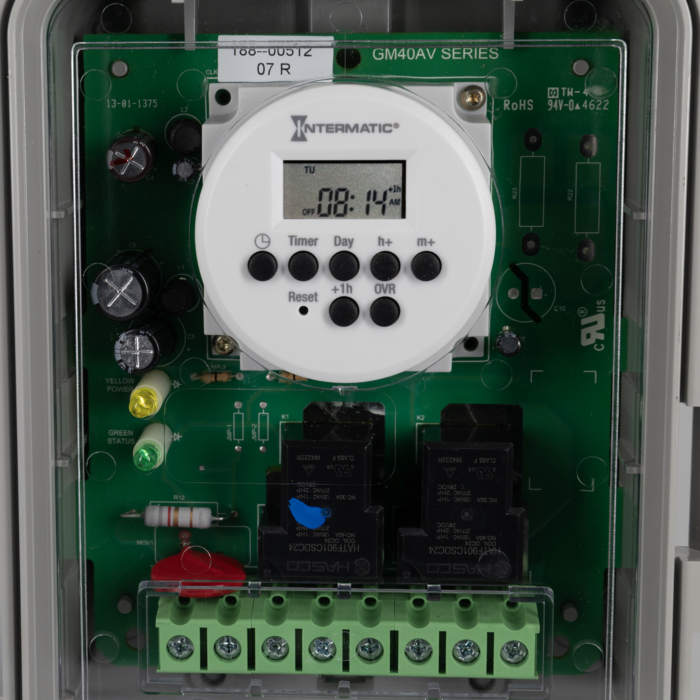

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
- Heavy-duty 40 A contact rating
- Automatically adjusts voltages between 120-277 VAC
- 24-Hour/7-day flexible scheduling
- Power and status LED indicators
- DPDT switching configuration (2 NO and 2 NC Contacts)
- 14 Setpoint programs
- Manual override with load status indication
- Self-recharging battery with back up protection up to 2500 hours
- Type 3R outdoor enclosure with lockable hasp
- To-the-minute accuracy
| Brand | Intermatic |
|---|---|
| UPC | 078275142428 |
| Store Location (Lititz, PA) | Aisle 05, Section D4 |
| Package Length (in) | 9.20" |
| Package Width (in) | 6.80" |
| Package Height (in) | 3.20" |
| Manufacturer Part Number | GM40AVE-RD89 |
| Country of Origin | China |
| Product Height | 8.88 in; 225.6 mm |
| Product Depth | 3 in; 76.2 mm |
| Operating Temperature Min | 5°F; -15°C |
| Operating Temperature Max | 131°F; 55°C |
| Warranty Period | 1-Year limited |
| Minimum On Off Time | 1 min |
| Tungsten NO Load Ratings | 15 A, 120 VAC, 50 Hz; 15 A, 120 VAC, 60 Hz |
| Setpoint Program Count | 14 |
| On Off Operations | 98 |
| Operation Mode | 24 hour; 7 day |
| UL Cerfication File Number | #E10694 |
| Voltage Selection Type | Auto Voltage |
| Display Operating Temperature Min F | -40 |
| Daylight Saving Adjustment | Manual |
| Expected Lifetime Operations | 6000 |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Backup Type | Battery |
| Battery Type | NiMh |
| Wiring Option | Screw box lug |
| Wire Size Max | #8 AWG |
| Number Of Circuits | 2 |
| Enclosure Type | Outdoor type 3R plastic |
| Backup Protection Time | 2500 Hours |
| Switch Type | DPDT |
| Electrical Life | 50, 000 operations at full load |
| RoHS Certification | Yes |
| PDF Standards And Certifications | Title 20; cULus; RoHS |
| Resistive NC Load Ratings | 30 A, 277 VAC, 60Hz; 30 A, 277 VAC, 50Hz; 30 A, 240 VAC, 60 Hz; 30 A, 240 VAC, 50 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 208 VAC, 50 Hz; 30 A, 120 VAC, 60 Hz; 30 A, 120 VAC, 50 Hz |
| Tungsten NC Load Ratings | 2 A, 120 VAC, 50 Hz; 2 A, 120 VAC, 60 Hz |
| Resistive NO Load Ratings | 40 A, 277 VAC, 60 Hz; 40 A, 277 VAC, 50 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 240 VAC, 50 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 208 VAC, 50 Hz; 40 A, 120 VAC, 50 Hz; 40 A, 120 VAC, 60 Hz |
| Motor Load Ratings NC Ranges | 1 HP, 12 FLA, 30 LRA @ 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA @ 240 VAC, 50/60 Hz |
| Motor Load Ratings NO Ranges | 1 HP, 16 FLA, 96 LRA @ 120 VAC, 50/60 Hz; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC, 50/60 Hz |
| Resistive Load Ratings NO Ranges | 40 A, 120-277 VAC, 50/60 Hz |
| Resistive Load Ratings NC Ranges | 30 A, 120-277 VAC, 50/60 Hz |
| Electronic Ballast Load Ratings NO Ranges | 30 A, 120 VAC, 50/60 Hz; 20 A, 277 VAC, 50/60 Hz |
| Tungsten Load Ratings NO Ranges | 15 A, 120 VAC, 50/60 Hz |
| UL Certification | cULus |
| Other Certifications | Title 20 |
