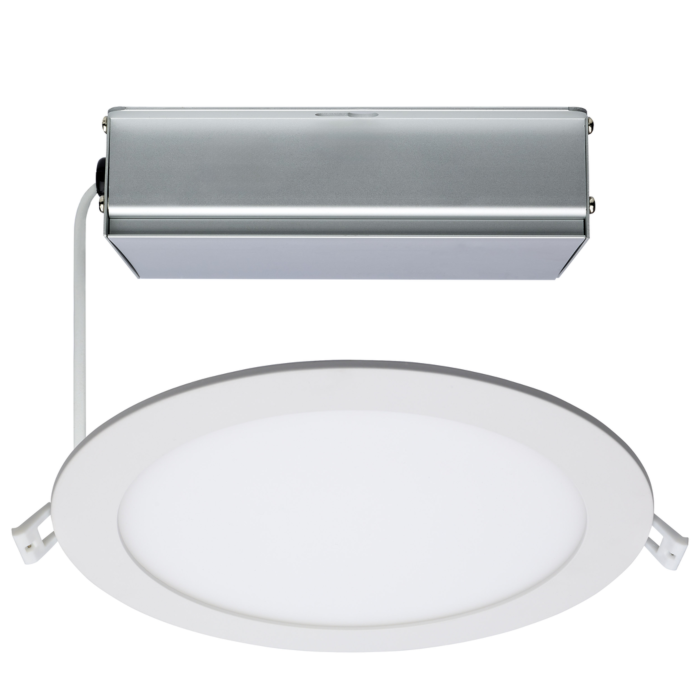

24 Watt - LED Direct Wire Downlight - Edge-lit - 8 inch - CCT Selectable - 120 volt - Dimmable - Round - Remote Driver
SKU: S11828
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$52.99
Features
Specifications
Downloads
SATCO NUVO's S11828 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. This 8-inch round trim with white finish offers an easy way to incorporate upgraded LED lighting into any environment.
- Lead
- ColorQuick CCT Selectable
- 90 CRI
- Wet Location Rated
- Dimmable
- IC Rated
- Air Tight Rated
- Title 24 Compliant
- 108-Degree Beam Angle
- 120V
| Brand | Satco |
|---|---|
| UPC | 045923118289 |
| Package Length (in) | 9.41" |
| Package Width (in) | 1.81" |
| Package Height (in) | 1.81" |
| Manufacturer Part Number | S11828 |
| Country of Origin | Vietnam |
| Candlepower | 550 |
| Width | 8.86 in |
| Height | 0.9 in |
| Weight | 1.57 lbs |
| Warranty | 5-Years |
| Air Tight | Yes |
| ANSI Base | Integrated |
| Beam Spread | 108 |
| Bulb Included | Integrated |
| Can Size | 8 in. |
| CCT Selectable | Yes |
| Ceiling Aperture | 8.11 in. Cutout |
| Clearance Height | 2 |
| Color Temp | Warm to Cool White |
| Connection | Direct Wired |
| CRI | 90+ |
| Diameter | 8.86 in. |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Forward Phase or Reverse Phase or Phase Selectable |
| DLC Approved | No |
| ENERGY STAR | No |
| FCC Compliant | Yes |
| Finish | White |
| Finish Family | White |
| Fixture shape | Round |
| Product Type | Direct Wire LED Downlight |
| Has Driver | Yes |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| IC Rated | Yes |
| Incandescent Equiv | 85W |
| Indoor Outdoor | Indoor |
| IP Rating | IP20 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Frost |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Lumens | 2000L |
| Material | Aluminum |
| Max Dry Wall Thickness (In.) | 1/2 in. |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Power Factor | >0.9 |
| Rec Spacing Between Fixtures | 6 ft. to 8 ft. |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| Sloped Ceiling Compatible | No |
| Style | Utility |
| Technology | LED |
| Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K |
| THD | <20% |
| Trim Color | White |
| Volts | 120V |
| Watts | 24W |
| Wattage Selectable | No |
| Voltage Text | AC Only |
| Has Camera | No |
| IOT Enabled | No |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
