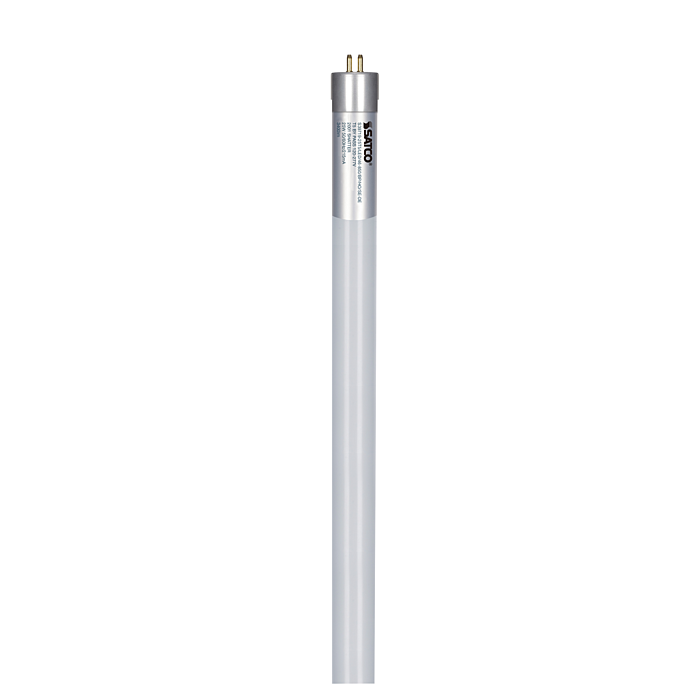

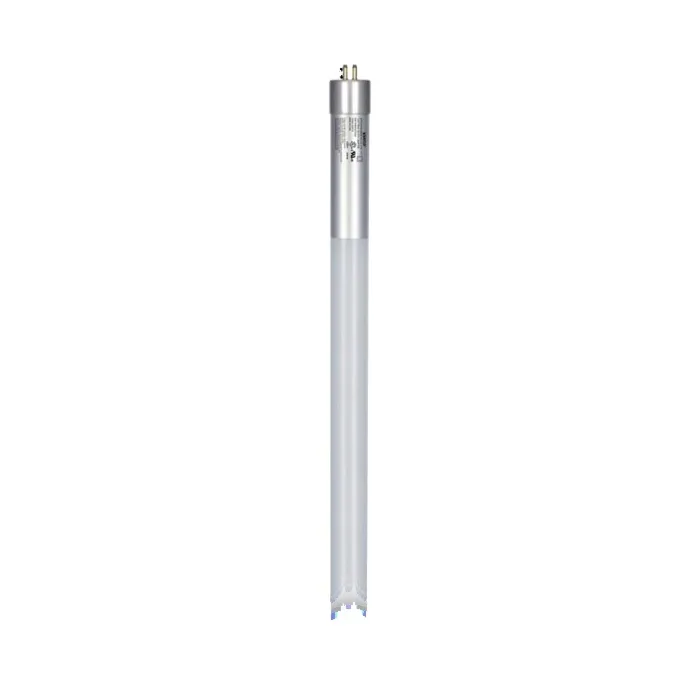

25 Watt T5 LED - Miniature bi-pin base - 5000K - 50000 Average rated hours - 3400 Lumens - 120-277 Volt - Type B - Ballast Bypass - Single or Double Ended Wiring
SKU: S29719
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$16.49
- Buy 25 for $14.84 each and save 10%
Features
Specifications
Downloads
SATCO NUVO's S39719 25-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast or external driver required for this lamp that delivers 50,000 hours of natural white light.
- Single or double ended wiring
- All glass tube
- PET-shatterproof coated
- NSF certified
- Damp location rating
- 50/60 hertz electric power frequency
- White finish
- Ballast Bypass
- Not for use in vapor tight fixtures.
| Brand | Satco |
|---|---|
| UPC | 045923397196 |
| Store Location (Lititz, PA) | Aisle 10, Section A2 |
| Package Length (in) | 0.85" |
| Package Width (in) | 45.90" |
| Package Height (in) | 45.90" |
| Manufacturer Part Number | S39719 |
| Country of Origin | Vietnam |
| Length | 48 in |
| Weight | 0.52 lbs |
| Warranty | 5-Years |
| Amps | 0.208-0.090A |
| ANSI Base | G5 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 240 |
| Burning Position | Universal |
| CCT Selectable | No |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Natural Light |
| CRI | 80+ |
| DLC Approved | Yes |
| DLC Classification | Standard |
| DLC ID | PLYF62HN8A9I |
| DLC Primary Use | Internal Driver/Line Voltage (UL Type B) Lamps |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | Linear |
| Flr Equiv | 54W |
| Avg Rated Hours | 50000 |
| Housing Color | White |
| Finish | Frost |
| Incandescent Equiv | 100W |
| IP Rating | IP20 |
| Lamp Base | Miniature Bi Pin |
| Lamp Filament | LED |
| Lamp Shape | T5 |
| Lamp Ballast Type A/B/C | Type B |
| Lamp End Type | Double Ended, Single Ended |
| Lensed | Yes |
| Lens Finish | Frost |
| Lens Material | Glass |
| Lumens | 3400L |
| Material | Glass |
| MOD Decimal | 0.83 in. |
| MOL Decimal | 46 in. |
| NSF Approved | Yes |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +45C (+113F) |
| Power Factor | 0.9 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component |
| Location Rating | Damp |
| Shatter Proof Type | PET Coated |
| Surge Protection | Built-in-surge protection - 0.7KV |
| Technology | LED |
| Temperature (CCT) | 5000K |
| THD | 20% |
| Three-Way | No |
| Volts | 120V-277V |
| Watts | 25W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
