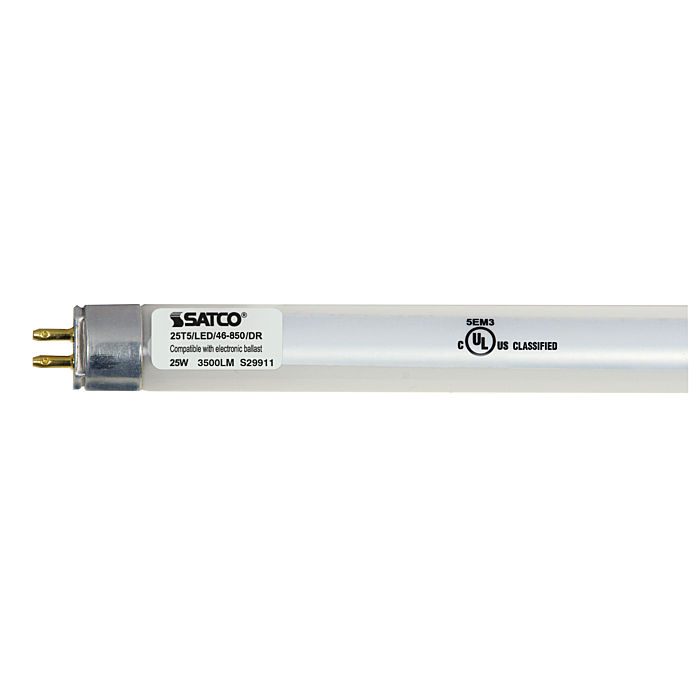

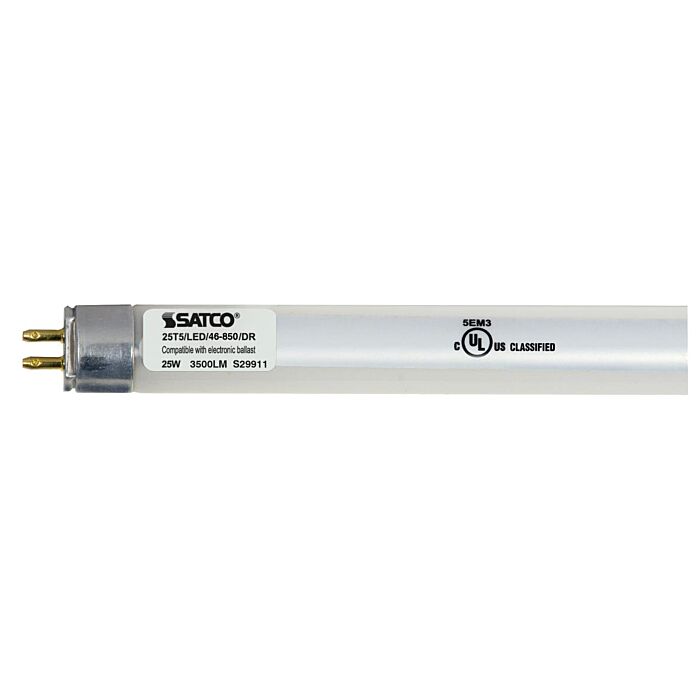

25 Watt T5 LED - Miniature bi-pin base - 5000K - 50000 Average rated hours - 3500 Lumens - Type A - Ballast dependent
SKU: S9911
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$15.99
- Buy 10 for $14.39 each and save 10%
Features
Specifications
Downloads
SATCO NUVO's S29911 4-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 25 watt, 5000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins. The all-glass tube construction not only delivers exceptional clarity, but also adds a touch of elegance to any space.
- Over 50 percent Energy Savings Vs. Standard T5 Systems
- Compatible with T5 HO Ballasts
- Integrated Thermal Fuse at Pins
- All Glass Tube Construction
- Damp Location Rated
- Enclosed Fixture Rated
- DLC Listed
- Light Emitting Area of 325 degrees
- System Wattage (Type A) - 28W
- Ballast required, check compatibility
- Integrated thermal fuse at pins
- Not for use in vapor tight fixtures.
| Brand | Satco |
|---|---|
| UPC | 045923299117 |
| Store Location (Lititz, PA) | Aisle 10, Section A3 |
| Package Length (in) | 47.60" |
| Package Width (in) | 0.59" |
| Package Height (in) | 0.59" |
| Manufacturer Part Number | S29911 |
| Country of Origin | China |
| Length | 48 in |
| Weight | 0.3 lbs |
| Warranty | 5-Years |
| Amps | 0.208-0.090A |
| ANSI Base | G5 |
| Ballast Bypass Direct | Direct |
| Beam Spread | 185 |
| Burning Position | Universal |
| CCT Selectable | No |
| CA Regulations | Exempt - Base Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Color Temp | Natural Light |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Only in Type A mode, Check Ballast MFG for Dimmer Compatibility |
| DLC Approved | Yes |
| DLC Classification | Standard |
| DLC ID | PL2M6895FL33 |
| DLC Primary Use | Replacement Lamps (Plug and Play) (UL Type A) |
| Enclosure Rating | Enclosed Rated Lamp |
| FCC Compliant | Yes |
| BAA Compliant | No |
| Product Type | Linear |
| Flr Equiv | 54W |
| Avg Rated Hours | 50000 |
| Housing Color | None |
| Finish | Gloss |
| Incandescent Equiv | 100W |
| Lamp Base | Miniature Bi Pin |
| Lamp Filament | LED |
| Lamp Shape | T5 |
| Lamp Ballast Type A/B/C | Type A |
| Lamp End Type | Double Ended |
| Lensed | Yes |
| Lens Finish | Gloss |
| Lumens | 3500L |
| Material | Aluminum / Glass |
| MOD Decimal | 0.63 in. |
| MOL Decimal | 46 in. |
| NSF Approved | Yes |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Power Factor | 0.9 |
| Rated For Enclosed Fixture | Yes |
| RoHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| Location Rating | Damp |
| Technology | LED |
| Temperature (CCT) | 5000K |
| THD | 20% |
| Three-Way | No |
| Volts | Ballast Dependent |
| Watts | 25W |
| Has Emergency Battery | No |
| Has Camera | No |
| IOT Enabled | No |
