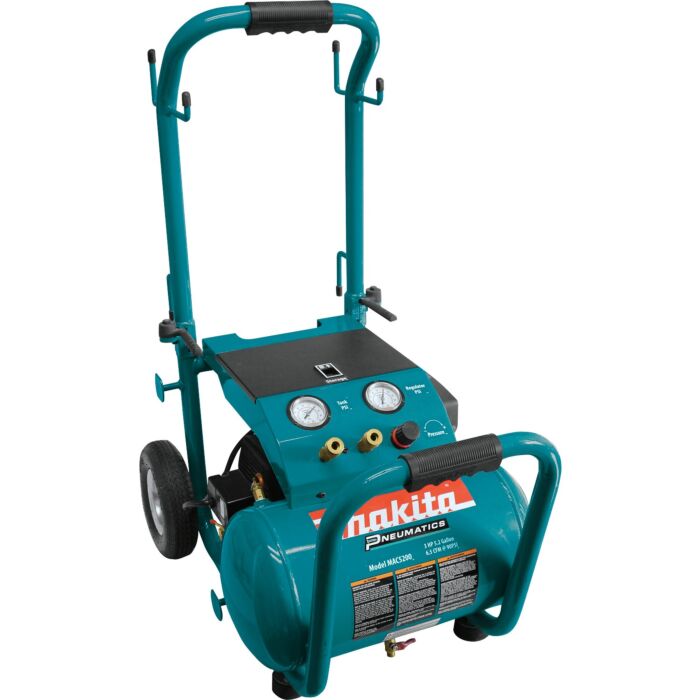

3.0 HP* Big Bore™ Air Compressor

Makita’s 3.0 HP Air Compressor is equipped with Makita’s Big Bore™ engineered pump cylinder and piston for higher output for two nailers, with less noise and improved jobsite performance. The MAC5200 delivers industrial power and results with improved durability and includes rugged wheels and folding handle for easy transport. 3.0 HP with Big Bore™ Engineered Pump The MAC5200 is powered by a 3.0 HP motor with built-in thermal overload for additional protection. The Makita Big Bore™ engineered pump with cast iron cylinder has greater bore and stroke for increased compression, faster recovery and less noise. The cast iron construction is engineered for increased durability even under tough job site conditions. The MAC5200 has an oil lubricated pump and is equipped with a large automotive style filter for increased air intake and greater efficiency. The 5.2 gallon tank sustains an operating pressure of 140 PSI and delivers 40PSI (6.9 CFM) and 90 PSI (6.5 CFM), enough for two nailers. The oil lubricated pump runs cooler, and the finned discharge tubing dissipates heat more efficiently. The roll cage construction is built for extra protection for the pump and motor assembly, helping it withstand harsh jobsite environments. Ease-of-use and convenience features include tool hangers, a built-in storage compartment for air fittings and accessories, and an air hose wrap to store 50’ of 3/8” air hose with handle folded or upright. Other features include a convenient oil drain and oil sight glass, and a tank drain valve that supersedes standard petcock design for easier maintenance. Versatile Design for a Range of Applications The MAC5200 is engineered for low noise, high output and less maintenance, and delivers industrial power and results with improved durability under tough job site conditions.

• Rugged wheels for jobsite portability
• Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance
• Cast iron pump with Big Bore™ cylinder and piston is engineered to provide faster recovery time for improved performance
• POWER - 6.5 CFM @ 90PSI; Powerful enough to run two framing nailers
• Oil sight glass for fast, easy and efficient maintenance
• Built-in storage compartment conveniently stores air fittings and accessories
• Convenient oil drain at the front of the pump for easy access
• Durable cast iron cylinder reduces wear and increases pump life
• Large automotive style industrial air filter for increased air intake and greater efficiency
• Built-in thermal overload for additional motor protection
• DURABILITY - Roll cage construction for extra protection to pump and motor assembly
• Powerful 3.0 HP motor produces 6.5 CFM at 90 PSI for increased productivity
• CONVENIENCE - Oil drain and oil sight glass conveniently located for easy access and maintenance
• Air hose wrap stores 50 ft. of 3/8" air hose with handle folded or upright
• Powerful 3.0 HP* motor produces 6.5 CFM at 90 PSI for increased productivity
• Air Compressor Oil (181122-A)
• 2 1/4" Universal Quick Coupler, Male (447013-E)
• INCLUDES - Oil and 1/4” universal quick couplers (2)
• Pump is oil-lubricated for cooler running temperatures and reduced wear
• PERFORMANCE - Cast iron cylinder with greater bore and stroke for maximum performance
• Folding handle with low profile design for easy storage with handle folded
• Tool hangers store tools when not in use
• Roll cage construction for extra protection to pump and motor assembly
• Lever-handle ball valve tank drain improves upon standard petcock design for easier maintenance and air tank release
• Copper finned discharge tubing for increased heat dissipation and reduced water in the tank
• Folding handle with low-profile design for easy storage
• Pump is oil lubricated for cooler running temperatures and reduced wear
