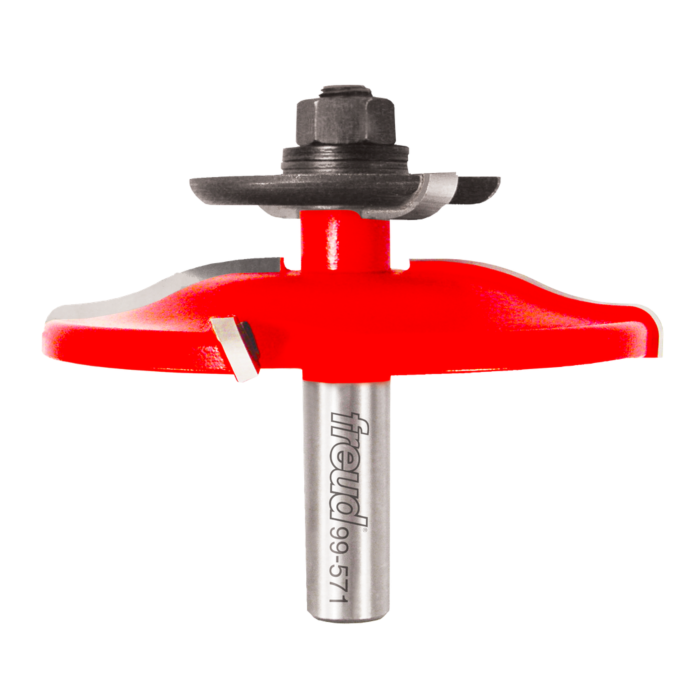

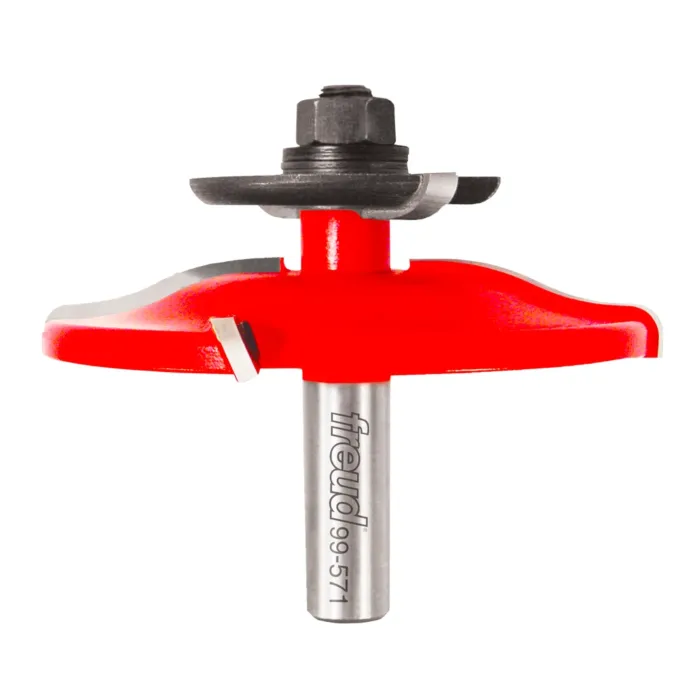

3-1/2" (Dia.) Raised Panel Bit w/Backcutters (Quadra-Cut)
SKU: F99571
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$129.99
Features
Specifications
These Raised Panel Bits include a backcutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut™ design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.
- Veneered Plywood
- Hardwoods
- Softwoods
- Composites
- Bits include backcutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
- Cuts all composition materials, plywoods, hardwoods, and softwoods
- Use in table-mounted routers with fence only
- Freud Perma-SHIELD® Coating
- Routing 3/4"-thick panels that are flush with the doorframe
| Brand | Freud Tools |
|---|---|
| UPC | 008925036852 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 3.50" |
| Package Width (in) | 4.38" |
| Package Height (in) | 4.38" |
| Manufacturer Part Number | 99-571 |
| Carbide Height (h) | 1" |
| Overall Dia. (D) | 3-1/2" |
| Overall Length (H) | 3" |
| Number of Cutters | 4 |
| Small Radius (R2) | 5/32" |
| Large Radius (R1) | 1-3/16" |
| Shank Dia. (A) | 1/2" |
