Jensen Swing
Ductile Iron Galvanized Pipe Swing Hanger
SKU: RPO6
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$52.99
Features
Specifications

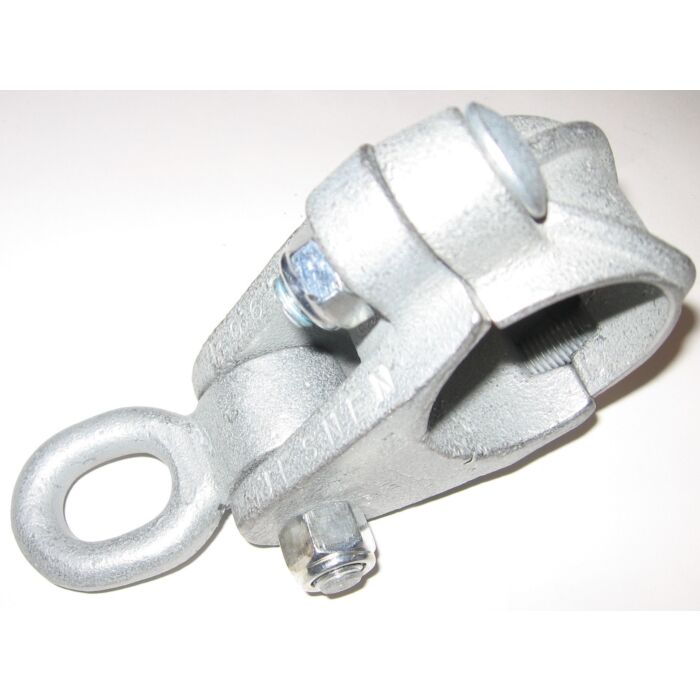

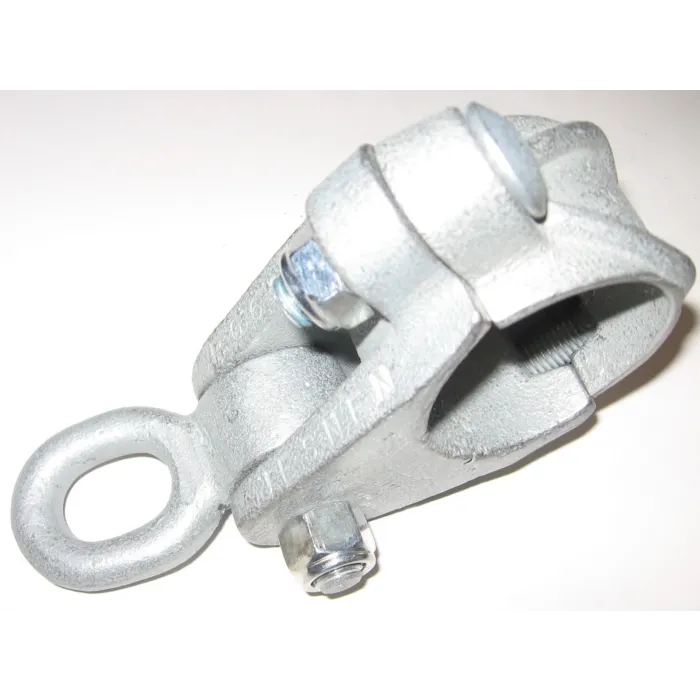

This galvanized ductile iron swing hanger features a loop pendulum with a self-lubricating sintered bronze bearing. It has a 0.51" ID oil-light bearing, accepts a 12mm bolt, and includes an axle bolt with a lock-tight nut. The hanger's two halves are bolted together with a 12mm carriage bolt and hex lock-tight nut. The pendulum is held with a #12 axle bolt with a long shoulder and a lock-tight nut. It fits a standard schedule 40 three-inch pipe. Do not torque more than 25 ft-lbs during installation. This product has a tensile strength of 8600 lbs and is expected to last 2-5 years depending on conditions.
- 8600 lb tensile strength
| Brand | Jensen Swing |
|---|---|
| Store Location (Lititz, PA) | Aisle 16, Section H6 |
| Package Length (in) | 7.00" |
| Package Width (in) | 3.00" |
| Package Height (in) | 8.00" |
| Manufacturer Part Number | SH125 |
| Material | Ductile Iron |
| Finish | Galvanized |
| Width | 3-1/2" |
| Tensile Strength | 8600 lb |
