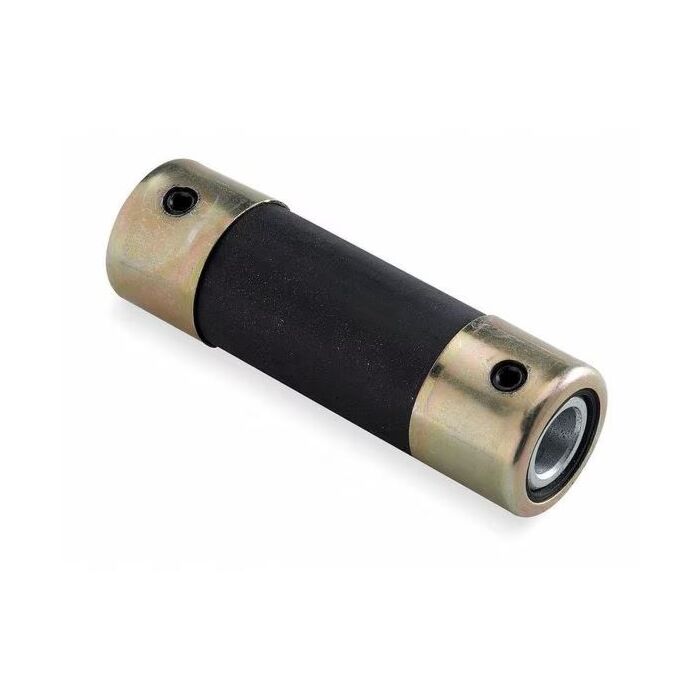

1/2 in 1/4-20 Shaft Coupling
SKU: 2X499
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.49
Features
Specifications
Shaft Coupling, 1/2 in Bore Dia, 1 - 1/8 in Outside Dia, 3 - 1/2 in Overall Length, 1/4-20 Screw, 1/8 in Maximum Parallel Misalignment, 7 deg Maximum Angular Misalignment, Flexible Buna Nitrate Rubber Sleeve, Knurled Steel Hub, 1725 rpm Speed Rating, 1/2 hp
| Store Location (Lititz, PA) | Aisle 10, Section W2 |
|---|---|
| Package Length (in) | 0.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.60" |
| Bore Diameter | 1/2 in |
| Outside Diameter | 1 - 1/8 in |
| Overall Length | 3 - 1/2 in |
| Screw Size | 1/4-20 |
| Maximum Parallel Misalignment | 1/8 in |
| Maximum Angular Misalignment | 7 deg |
| Material | Flexible Buna Nitrate Rubber Sleeve, Knurled Steel Hub |
| Speed Rating | 1725 rpm |
| Power Rating | 1/2 hp |
