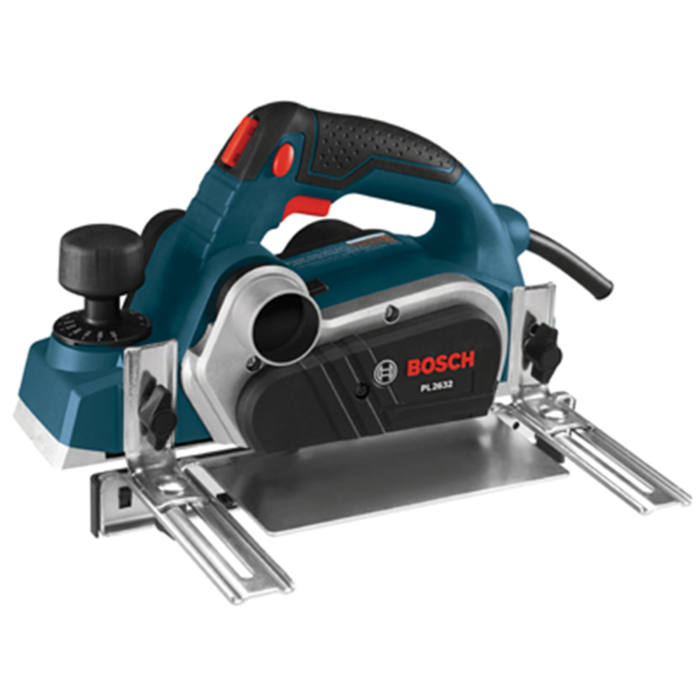

3-1/4 In. Planer Kit
SKU: BPL2632K
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$199.99
Features
Specifications
The Bosch PL2632K 3-1/4 In. Planer Kit features a tool with a 6.5 Amp motor that produces 16,500 RPM for fast stock removal and smooth finishes. The aluminum front and rear shoes are precision-machined together for accuracy, and the tool has a machined groove for chamfering. The tool also provides a spring-loaded stand that elevates the planer to protect the blade and the tool-resting spot. Equipped with reversible Bosch Woodrazor micrograin carbide blades, the Bosch PL2632 gives users the option of a two-blade system to accommodate high-speed steel blades (optional accessories are required). The dual-mount guide fence can be mounted on either side of tool, and its plastic overshoe prevents marring of door or workpiece face. The tool's ambidextrous lock-off release button helps prevent avoid accidental starts, and it has a lock-on button for extended operation, a combination that is unique to Bosch planers. The chip-ejection switch can be moved to discharge the shavings left or right, and dust ports are located on both sides of the tool to accommodate a large shavings bag. This planer is built with a poly micro-V drive belt for enhanced belt durability and a ball-joint cord swivel for enhanced ease of positioning the tool and cord.
- Bosch 1608132006
- Bosch PA1206
- Bosch VAC005
- Bosch VAC006
- Bosch VAC007
- Bosch VAC008
- Bosch VAC002
- Bosch 3931A-PB
- Bosch VAC021
- Bosch VAC020
- Bosch 2605702022
- Bosch 3931B-SPB
- Bosch 3931A-PBH
- Bosch VH1035
- Bosch VH1635A
- Bosch VH1635
- Bosch VX120
- Bosch VAC090S
- Bosch VAC140S
- Bosch VAC140A
- Bosch VAC090A
- 6.5 Amp motor producing 16,500 RPM – for fast stock removal and smooth finish
- Dual-mount guide fence – mounts to either side of tool and helps ensure consistent planing through entire workpiece; includes protective shield and 0° and 3° no-mar plastic overshoes
- Ambidextrous lock-off release button – helps prevent accidental starts; includes a lock-on button for extended operation
- Aluminum front and rear shoes – precision-machined together after assembly to ensure accuracy
- Ratcheting depth knob – for foolproof depth-increment setting 0 to 2.6 mm (3/32 In.) within one revolution, eliminating the need to re-zero the depth
- Ejection control – allows shavings to be directed left or right
- Ball-joint cord swivel – for enhanced ease of positioning the tool and cord
- Reversible Bosch Woodrazor micrograin carbide blades – lasts up to 30% longer than standard carbide blades
- Versatile two-blade system – can be converted for use with large high-speed steel blades (optional accessories required)
- Spring-loaded stand elevates tool – protects blade and tool resting spot
- Separate inch and metric depth scales – for easy setting of planing depth
- Machined groove – for chamfering
- Poly micro-V drive belt – provides enhanced belt durability
| Brand | Bosch |
|---|---|
| UPC | 000346460032 |
| Store Location (Lititz, PA) | Aisle 27, Section N4 |
| Package Length (in) | 14.60" |
| Package Width (in) | 7.60" |
| Package Height (in) | 7.60" |
| Manufacturer Part Number | PL2632K |
| Amperage (A) | 6.5 |
| Blade Count | 2 |
| Blade Type | Woodrazor Mini Micrograin Carbide Blades (2) |
| CSA Certified | Yes |
| Case Included | Yes |
| Case Type | Heavy-duty plastic |
| Color / Finish | Blue |
| Cord Length (ft) | 10 |
| Cordless / Corded | Corded |
| Country of Origin | Malaysia |
| Cuts Per Minute | 16500 |
| Depth Of Cut Range | 0-3/32 In. (2.6 mm) |
| ETL Listed | No |
| Fence Included | Yes |
| Handle Material | Composite |
| Height (in) | 6.5 |
| Housing Material | Glass-Filled Nylon |
| Integrated Chip Management | Yes |
| Length (in) | 11.125 |
| Lock-on Switch | Yes |
| Maximum Cutting Depth (in) | 0.1024 |
| Maximum RPM | 16500 |
| Maximum Width Cutting Capacity (in) | 3.25 |
| Planing Depth | 0" to 3/32" (2.6mm) |
| Planing Width | 0" to 3-1/4" |
| Powered Tool Power Source | Electric - Corded |
| Provantage | N |
| Rabbet Depth | 5/16" |
| Rabbet Width | 3-1/4" |
| Rabbeting Depth (in) | 0.3125 |
| Rating | 120V AC |
| Shoe Length (in) | 11.4 |
| Switch Type | Trigger Switch With Ambidextrous Lock-Off Release Button and Lock-On Button |
| UL Listed | No |
| Variable Speed | No |
| Voltage | 120 |
| Voltage (V) | 120 |
| Warranty | Limited 1 Year |
| Weight | 6.3 lb |
| Weight (lbs) | 6.3 lb |
| Width (in) | 6.5 |
