Sigma Engineered Solutions

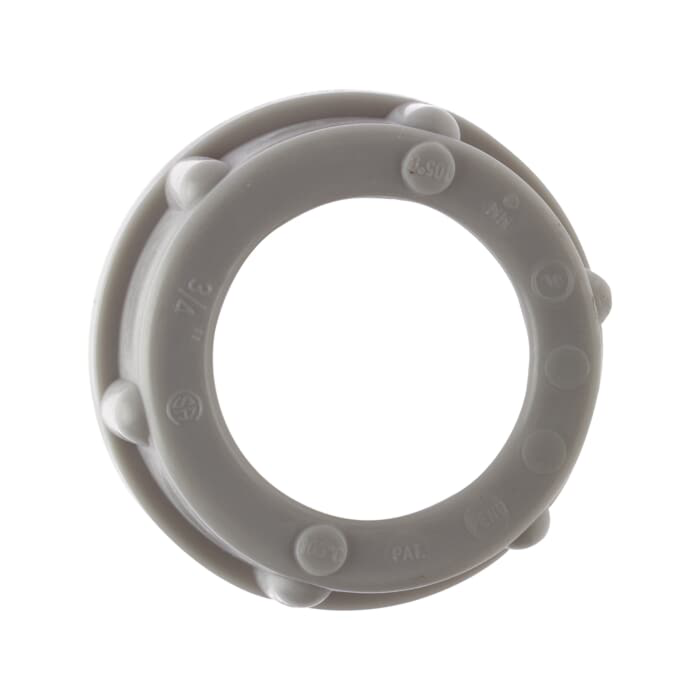

ProConnex Plastic Insulating Bushing (2pk) 3/4 in.
SKU: BCP34
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.89
Features
Specifications
The Sigma ProConnex Plastic Insulating Bushings are used on the end of Rigid conduit, IMC and other threaded connectors to provide a smooth well rounded bearing surface to protect wires or cables when pulling. These non-metallic bushings are rated for 105C and flame retardant.
- Provides a smooth surface on the end of conduit to protect wires
- Used on the end of 3/4" rigid conduit, IMC or other threaded connectors
- Thermoplastic construction
- Flame retardant
- Product is cULus listed
| Brand | Sigma Engineered Solutions |
|---|---|
| UPC | 051411975227 |
| Store Location (Lititz, PA) | Aisle 09, Section C3 |
| Package Length (in) | 0.50" |
| Package Width (in) | 5.00" |
| Package Height (in) | 8.00" |
| Manufacturer Part Number | BU502-2 |
| Application | For Use with Rigid/IMC Conduits |
| Product Type | Insulated Bushing |
| Material | Plastic |
| Size | 3/4" |
| WEEE Category | Product Not in WEEE Scope |
| Bushing Thickness | .1" |
| UL Listed | Yes |
| CSA Listed | Yes |
| Bushing Outside Diameter | 1.29" |
| Bushing Inside Diameter | 0.78" |
| Insulating | Yes |
