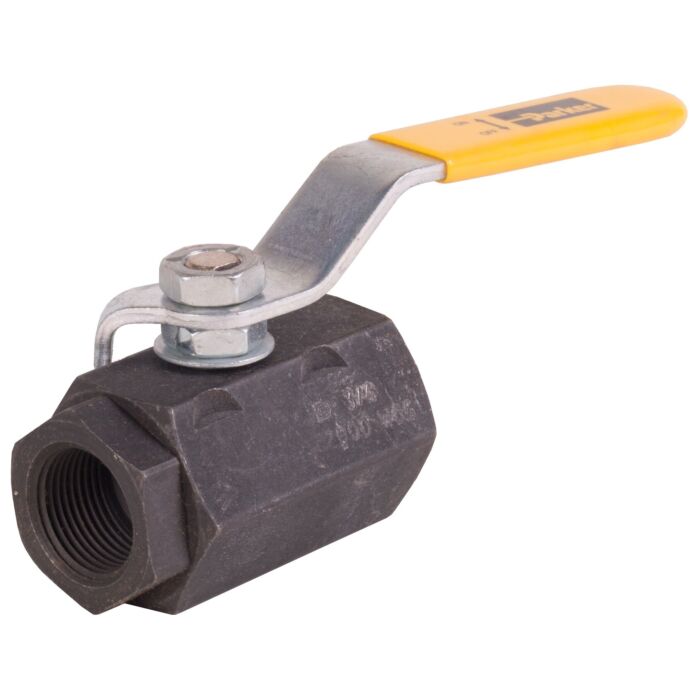

3/4 in Female x Female NPT Low Pressure Ball Valve
SKU: XV500CS12
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$59.99
Features
Specifications
Parker's industrial carbon steel ball valve line is intended for general purpose use. These valves were designed to offer superior performance for applications that require rugged and reliable performance. Carbon steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
| Brand | Parker |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N6 |
| Package Length (in) | 6.80" |
| Package Width (in) | 2.00" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | V500CS-12 |
| Type | Low Pressure |
| Series | V500CS |
| Nominal Size | 3/4 in |
| Connection Type | Female x Female |
| Port Type | NPT |
| Pressure Rating | 2000 psi |
| Media | Air/Oil/Water |
| Actuator Type | Lever |
| Flow Coefficient | 23 Cv |
| Mounting Type | In-Line |
| Body Material | Carbon Steel |
| Stem Material | Zinc Plated Carbon Steel |
| Seal Material | PTEE |
| Handle Material | Steel |
| Ball Material | Zinc Plated Carbon Steel |
| Temperature Rating | -4 to 350 deg F |
