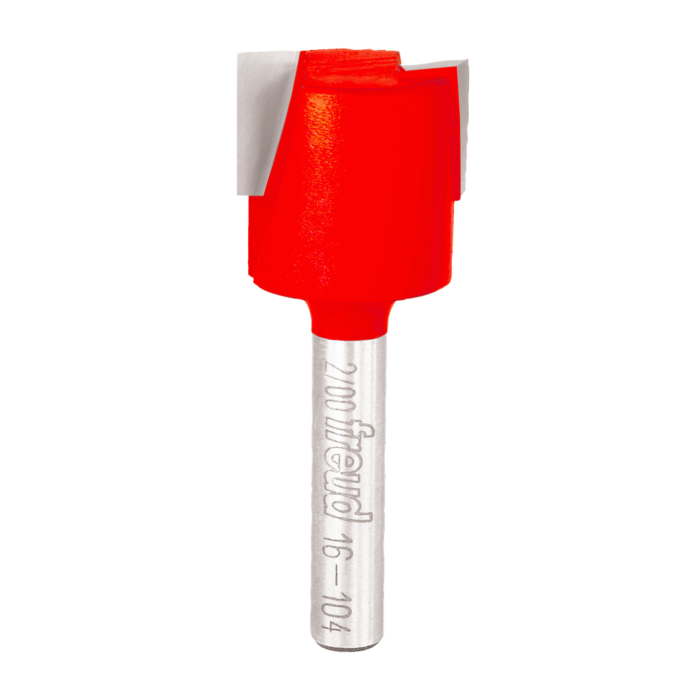

3/4" (Dia.) Mortising Bit
SKU: F16104
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$26.99
Features
Specifications
Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware, or cutting grooves and dadoes. These bits are designed with deep center gullets for maximum material removal without chip loading. Use in any CNC or portable router.
- Down shear design on most bits for clean top surfaces
- Deep center gullets for fast chip removal
- Use on CNC, hand-held and table-mounted portable routers
- Available with top bearings to suit popular routing jigs
- Freud Perma-SHIELD® Coating
- Veneered Plywood
- Hardwoods
- Softwoods
- Composites
- Ultra-clean hinge mortises
- or perfect grooves and dadoes
| Brand | Freud Tools |
|---|---|
| UPC | 008925380313 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 4.80" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | 16-104 |
| Carbide Height (h) | 1/2" |
| Overall Dia. (D) | 3/4" |
| Overall Length (H) | 2" |
| Number of Cutters | 2 |
| Shank Dia. (A) | 1/4" |
