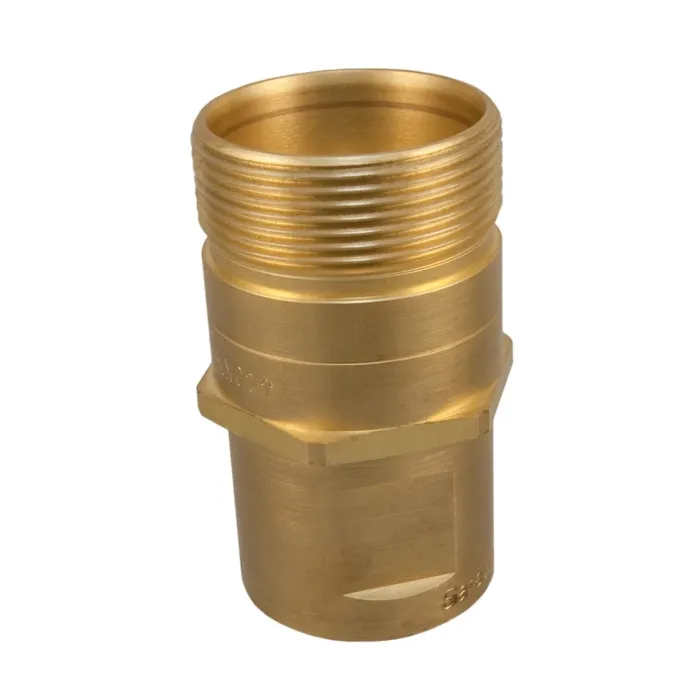

80 mm 3/4 in Male Heavy Duty Double Shut-Off Hydraulic Quick Coupling
SKU: S511X6 | Location: Aisle 06, Section W1
$82.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
4 In stock
Features
Specifications
SafeWay’s S51 Series is a minimum spill, thread-toconnect, fluid transfer quick coupling designed for use with most industrial fluids. It can be connected under full system pressure by rotating the female threaded heavy-duty ductile cast iron wing nut or steel hex nut onto the mating male threaded tip (nipple).
- Applications include "wet-line-kits" used widely on dump trailers, mobile drilling rigs, mining equipment, large mobile equipment, salt spreaders and chemical transfer units
- Minimum air inclusion during connection and minimum fluid spillage during disconnection
- Brass body tip and poppet combined with a rugged steel valve forcorrosion resistance and durability
- Connection-under-pressure can be accomplished due to our heavy-duty poppet assembly with bonded valve seals
- 100% leak tested
- SafeWay’s Ductile Cast Iron Wing Nut is specifically built to withstand hammer blows associated with connection and disconnection-under-pressure
- A rugged, high quality machined carbon steel valve; no powdered metal parts
- Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.R2, Hydraulic fluid power - Quick action couplings - Test methods
Brand | Safeway |
---|---|
Store Location (Lititz, PA) | Aisle 06, Section W1 |
Package Length (in) | 3.40" |
Package Width (in) | 1.80" |
Package Height (in) | 1.20" |
Manufacturer Part Number | S511-6 |
Type | Heavy Duty, Double Shut-Off |
Bore Diameter | 3/4 in |
Overall Length | 80 mm |
Shaft Connection | 3/4 in Male |
Temperature Rating | -40 to 250 deg F |
Material | Brass |
