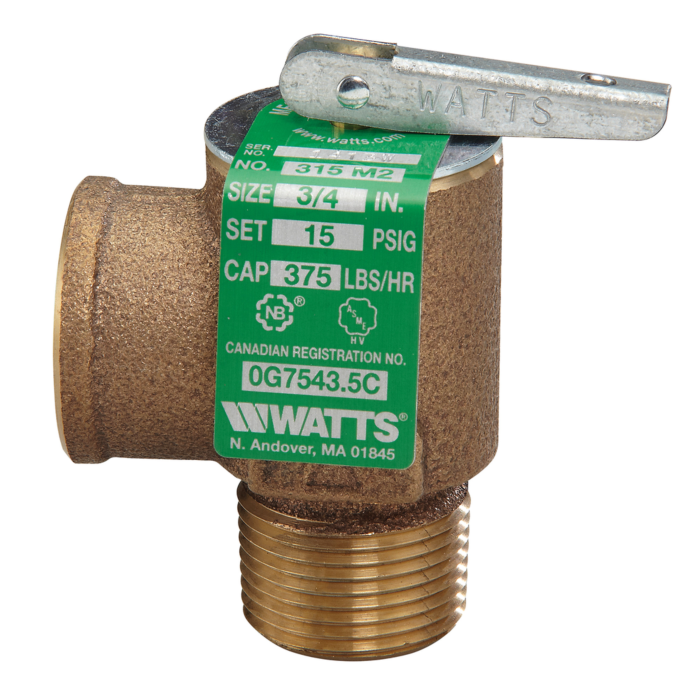

This 3/4 x 3/4 inch high capacity safety relief valve is designed for low pressure, steam heating boilers and process equipment used in industrial and commercial applications. It features a bronze body, stainless steel spring, top guided stem, NPT threaded male inlet x threaded female outlet (drain) connection, and a non-stick PTFE® disc to metal seating ensures positive shutoff. The factory pressure setting for saturated steam service is set at 15 psi. This valve has an ASME, section IV rating.
- Pressure for saturated steam service set at 15 psi
- Bronze body
- NPT male inlet x NPT female outlet
- Top guided stem and non-stick PTFE disc to metal seat assures positive shutoff
| Brand | WATTS |
|---|---|
| UPC | 098268792034 |
| Store Location (Lititz, PA) | Aisle 04, Section D4 |
| Package Length (in) | 3.00" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | 0342629 |
| Country of Origin | United States |
| Series | 315-M2 |
| Brand Name | Watts |
| Body Material | Bronze |
| Outlet Connection Size | 3/4" |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Inlet Connection Size | 3/4" |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Maximum Temperature | 250°F |
| Maximum Working Pressure | 10 |
| Protection Type | Pressure |
| Application | Boiler |
| Pressure Relief Setting | 15 PSI |
| Pressure Steam Discharge Capacity | 375 pounds per hour at 15 PSI |
| Test Lever | Yes |
