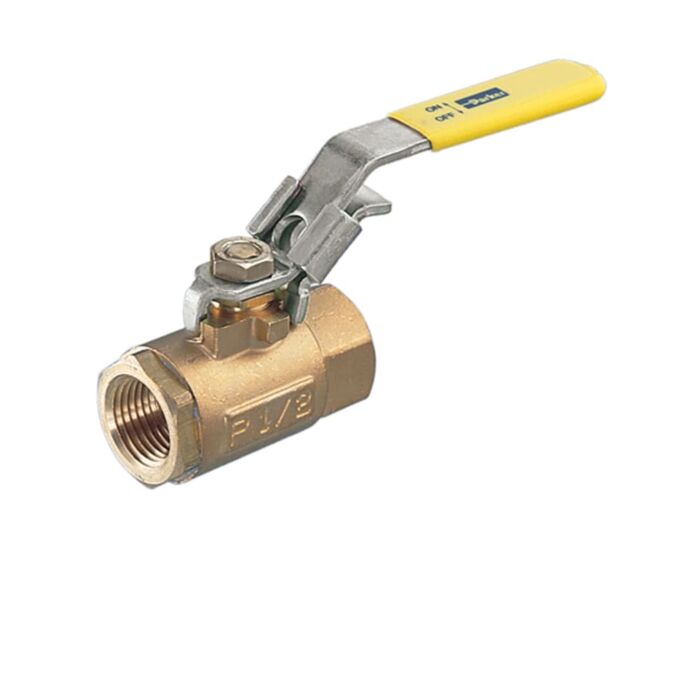

3/8 in Female x Female 600 psi Ball Valve
SKU: XV500P6
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$24.99
Features
Specifications
Parker’s V500 series ball valves are machined from high quality forgings that provide extended service life and resist failure caused by severe temperature conditions. The valves can be used in air, water and oil applications.
- Port options include NPT and SAE
- Material offerings are brass, carbon steel and stainless steel
- Pressures range from 250 PSI to 2,000 PSI depending on the series variation
| Brand | Parker |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section N6 |
| Package Length (in) | 2.40" |
| Package Width (in) | 2.00" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | V500P-6 |
| Series | V500 |
| Nominal Size | 3/8 in |
| Connection Type | Female x Female |
| Pressure Rating | 600 psi |
| Media | Air/Oil/Water |
| Actuator Type | Lever |
| Flow Coefficient | 5.8 Cv |
| Mounting Type | In-Line |
| Body Material | Brass |
| Stem Material | Chrome Plated Brass |
| Seal Material | PTFE |
| Ball Material | Chrome Plated Brass |
| Temperature Rating | -4 to 350 deg F |
| Application | Suitable for general hydraulic |
