Sigma Engineered Solutions
ProConnex Die-Cast Zinc 90 Deg Squeeze Connector For AC, MC - 3/8 in.
SKU: EAC90
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.09
Features
Specifications

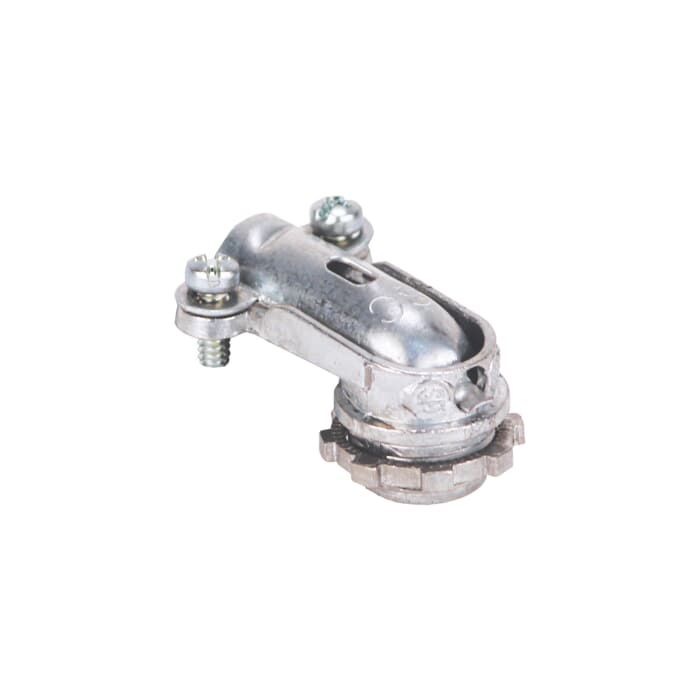

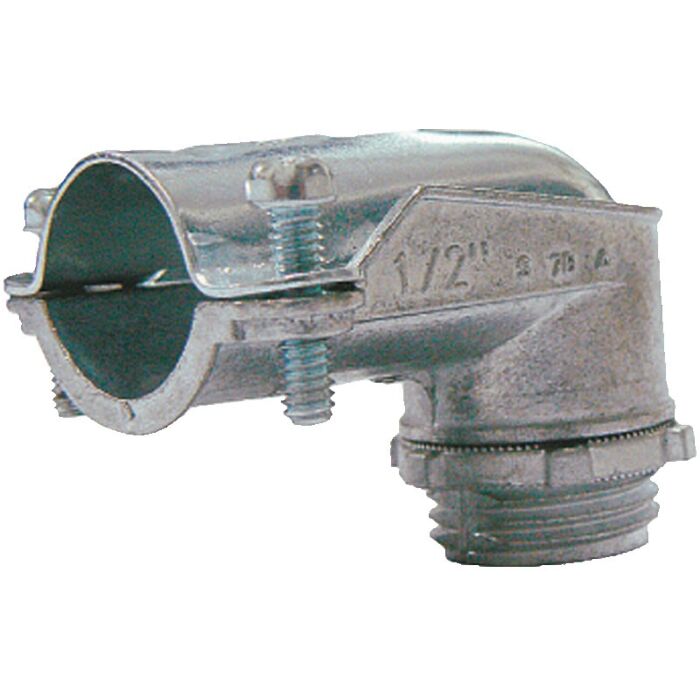

The Sigma ProConnex 90-Degree Squeeze Connectors are used to terminate AC, MC or FMC/RWFMC to a knockout in a dry location box or enclosure where a 90-degree bend is required. These die-cast connectors are equipped with tri-combo screws and are suitable for aluminum or steel conduit.
- Terminates AC, MC or FMC/RWFMC to a 1/2" knockout in a metal box or enclosure where a 90 degree bend is required
- For aluminum or steel 14/2 - 10/3 AC, 14/2 - 10/3 MCI and PCS, 10/3 - 10/4 MCI-A and HCF or 3/8" FMC/RWFMC
- Tri-combo screws included
- Suitable for dry locations
- Zinc die-cast construction
- Product is UL and CSA listed
| Brand | Sigma Engineered Solutions |
|---|---|
| UPC | 031857498016 |
| Store Location (Lititz, PA) | Aisle 09, Section C5 |
| Package Length (in) | 4.80" |
| Package Width (in) | 3.80" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | XC290-1 |
| Brand / Label | Steel City / Iberville |
| Effective Date | 19990219 |
| Material | Zinc Die Cast |
| Product Name | ZINC FITTING |
| Product Type | Connector, Non-Insulated 90 Degree Clamp-Type |
| Size | 3/8" |
| Special Functions | Captive Two Screw |
| Sub Brand / Label | Steel City |
| Country of Origin | India (IN) |
| Selling Unit of Measure | each |
| WEEE Category | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | 4441 >> Electrical fittings |
| Conduit Compatibility | AC, MC and FMC/RWFMC |
| UL Listed | Yes |
| CSA Listed | Yes |
