WATTS

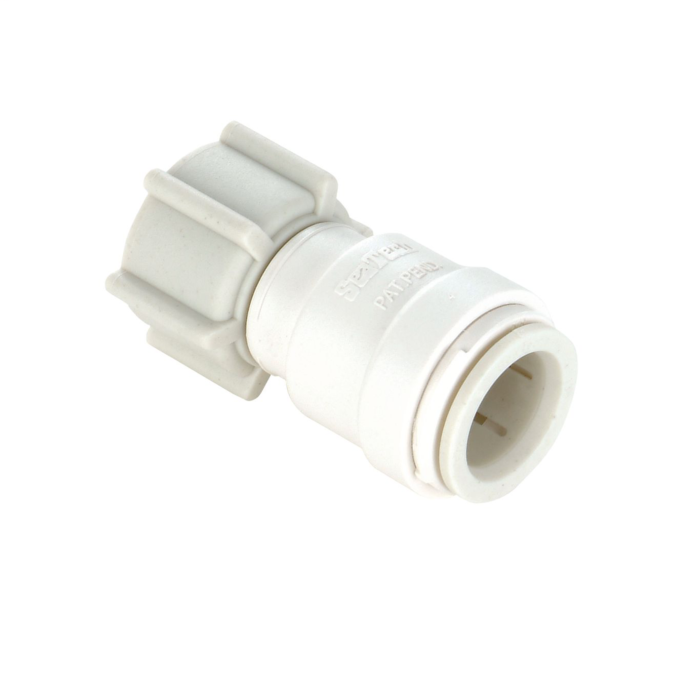

3/8 Cts X 1/2 In Nps Plastic Female Connector
SKU: FA1238QC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$10.99
Features
Specifications
Downloads
This 3/8 x 1/2 plastic female connector fitting is designed for point of use low pressure applications. It is designed and manufactured for many years of trouble free service. Produced of off-white polypropylene, a high performance thermoplastic material, the design allows for quick and easy connections without the use of installation tools.
- Manufactured from polysulfone
- Poly bagged
- Patented collet design
- No tools necessary for installation or removal
| Brand | WATTS |
|---|---|
| UPC | 098268305647 |
| Store Location (Lititz, PA) | Aisle 06, Section H1 |
| Package Length (in) | 4.60" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | 0959790 |
| Brand Name | Watts |
| Brass Insert | No |
| Finish | Polysulfone |
| Fitting Name | Connector |
| Inlet Connection Size | 3/8 IN |
| Inlet Connection Size-Metric | 10 MM |
| Inlet Connection Type | Quick Connect |
| Inlet Material | Polysulfone |
| Lead Free | Yes |
| Material | Polysulfone |
| Maximum Working Pressure-BAR | 17.20 |
| Maximum Working Pressure-PSI | 250 |
| Maximum Working Temperature-Celsius | 82.00 |
| Maximum Working Temperature-Fahrenheit | 180 |
| Minimum Temperature - Celsius | 24.00 |
| Minimum Temperature-Fahrenheit | 75 |
| Model Number | 3510B-0808 |
| O-ring Material | EPDM |
| Outer Diameter | 1 1/4 IN |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Material | Polysulfone |
| Outlet Thread Type | NPSI |
| Part Number | 0650103 |
| Series | 3510B |
| Suitable for Gas Service | No |
