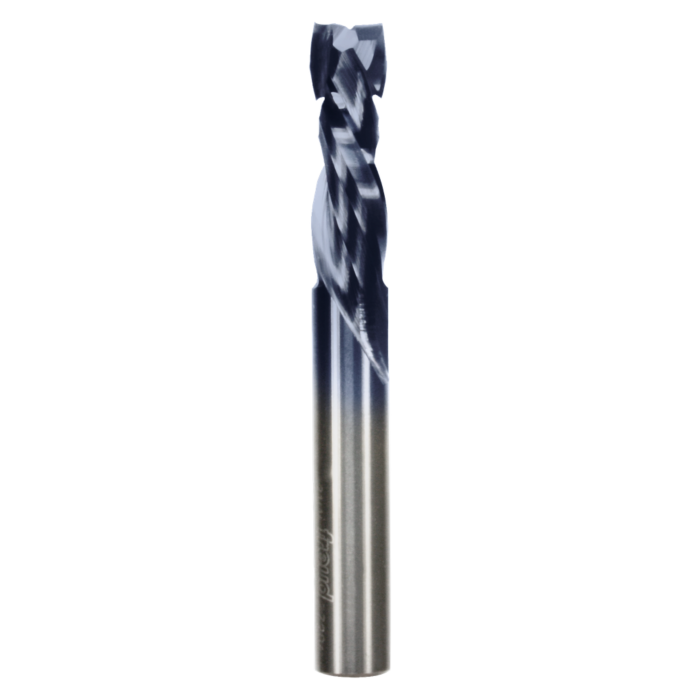

3/8" (Dia.) Double Compression Bit with 3/8" Shank
SKU: F77204
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$89.99
Features
Specifications
Compression Spiral bits eliminate chipping on both sides of double-sided veneers or laminated materials for the finest finish. These tools combine up shear and down shear flutes to prevent tear out on either side of the material. They are ideal for routing laminates like double-sided melamine panels, and also cuts well in plywood, hardwood or softwood. For use in CNC, hand-held and table-mounted routers.
- Veneered Plywood
- Hardwoods
- Softwoods
- Melamine/Laminate
- Composites
- Clean, chip free cuts in double-sided materials
- Combine up shear and down shear cutting action
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
- Chip-free routing in double-sided veneers and laminates
| Brand | Freud Tools |
|---|---|
| UPC | 008925059813 |
| Store Location (Lititz, PA) | Aisle 21, Section I6 |
| Package Length (in) | 3.80" |
| Package Width (in) | 0.80" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | 77-204 |
| Carbide Height (h) | 1-1/8" |
| Overall Dia. (D) | 3/8" |
| Overall Length (H) | 3" |
| Number of Cutters | 2 |
| Shank Dia. (A) | 3/8" |
| Upcut Length | 11/32" |
