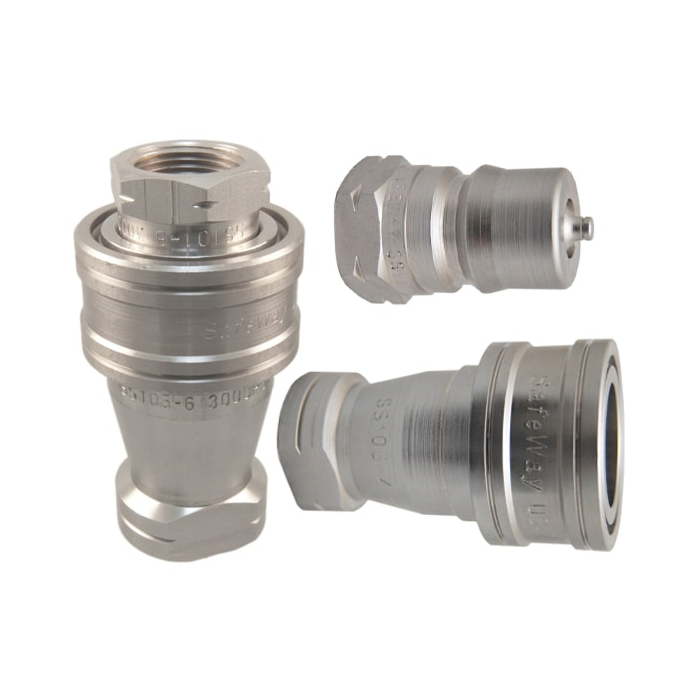

3.03 in 3/8 in Female Pipe General Purpose Hydraulic Quick Coupling
SKU: S10X3 | Location: Aisle 06, Section W1
$52.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Safeway’s S10 Series quick couplings meet international Standard ISO 7241-1 Series B requirements with improved performance over competitive interchanges (Aeroquip FD45, Hansen HK, Parker 60, etc.) This unit is 1/4 in body size in plated steel with an operating pressure of 5, 000 psi and a 1/4″ female pipe thread.
- Meets dimensional requirements of ISO 7241-1 Series B, the most widely used Industrial Interchange
- Interchangeable half-for-half with Aeroquip FD45, Hansen HK and Parker 60 Series as well as others conforming to the interchange
- Double shut-off poppet style valving with captive poppet seal provides a durable, guaranteed leak-free seal
- Full-flow design for optimum system performance
- 100% leak tested
- Heavy duty detent ball latch design for a reliable connection time after time
- Only rugged, high quality carbon steel valving and retainers; no powdered metal parts
- Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.R2
| Brand | Safeway |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section W1 |
| Package Length (in) | 3.60" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | S10-3 |
| Type | General Purpose |
| Bore Diameter | 3/8 in |
| Overall Length | 3.03 in |
| Shaft Connection | 3/8 in Female Pipe |
| Temperature Rating | -40 to 250 deg F |
| Material | Steel/303 Stainless Steel /Brass |
