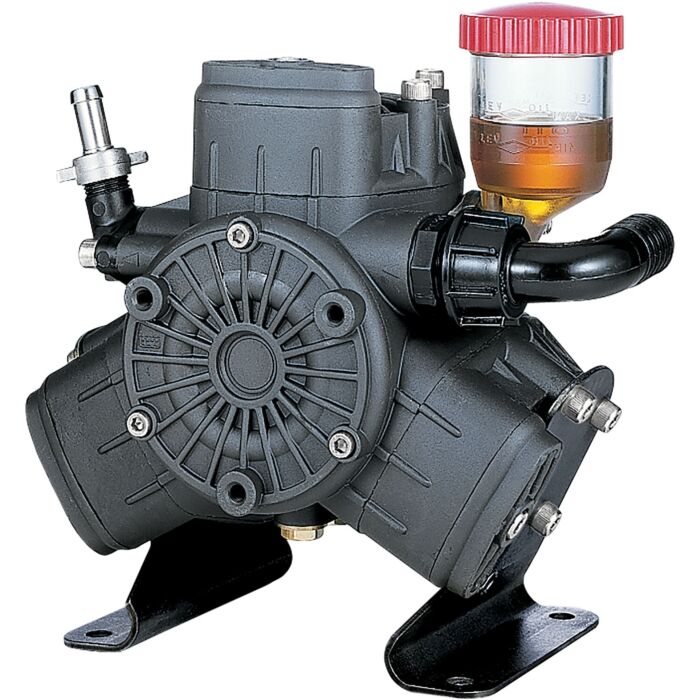

1/2 in Outlet Nominal Size NPT 10 gpm Diaphragm Pump

SKU: AR403SP | Location: Aisle 11, Section X4
check
PICKUP
Your store: PaulB Lititz, PA |
xmark
DELIVERY
Not available for parcel delivery

circle-exclamation 1 in stock

Due to the low inventory, we recommend contacting the store to verify availability.

This product must be picked up in-store.
Features chevron-down chevron-up
Alternating volumetric pumps with three semi-hydraulic diaphragms for use in the gardening or semi-professional agricultural sectors, trolley-mounted in combination with electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
  • Parts in contact with pumped liquids in plastic-coated aluminum and body in aluminum
  • Diaphragms in nbr, h.p.d.s., desmopan or viton
Specifications chevron-down chevron-up
Brand AR
Store Location (Lititz, PA) Aisle 11, Section X4
Manufacturer Part Number AR403-SP
Nominal Size 1/2 in Outlet
Connection Type NPT
Flow Rate 10 gpm
Diaphragm Material NBR
Pressure Rating 580 psi
Temperature Rating 140 deg F
Power Rating 3.7 hp
