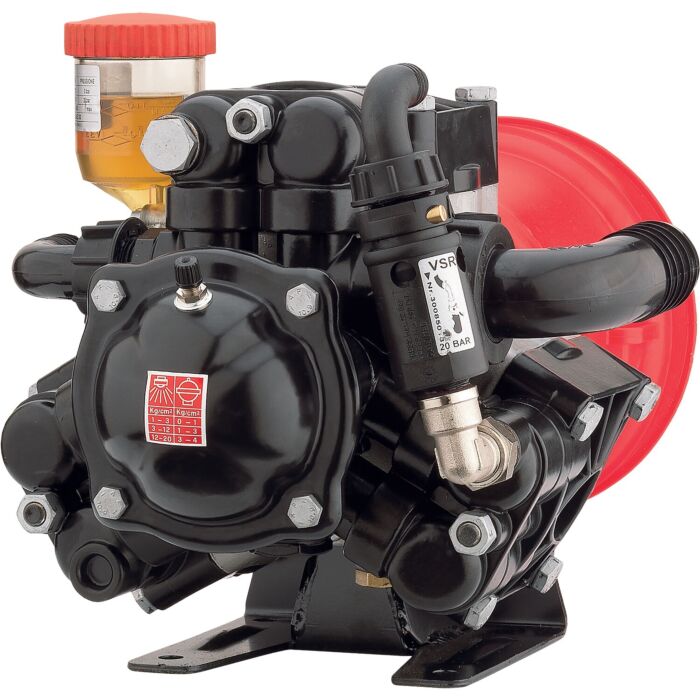

Annovi reverberi ar135bp-c liquid fertilizer and pesticide low pressure diaphragm pump. three semi-hydraulic diaphragms. single male cardan shaft. for use in the gardening or professional agricultural sectors, base-mounted in combination with pto's, electric motors or internal combustion engines for gardening and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
- Alternating volumetric pumps with three semi-hydraulic diaphragms for use in agriculture in low pressure systems for spraying open field crops with fertilizers, pesticides or weed killers
- Parts in contact with pumped liquids in plastic-coated aluminum and stainless steel
- Diaphragms in nbr, h.p.d.s., desmopan or viton
- Seals in nbr or viton
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
- New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
- Rugged feet secured to pump casing. geomet coated or stainless steel metal fasteners
Brand | AR |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section X5 |
Manufacturer Part Number | AR135BP-C |
Nominal Size | 1 in Outlet |
Flow Rate | 33 gpm |
Diaphragm Material | NBR |
Pressure Rating | 290 psi |
Temperature Rating | 140 deg F |
Power Rating | 6.8 hp |
