Apollo

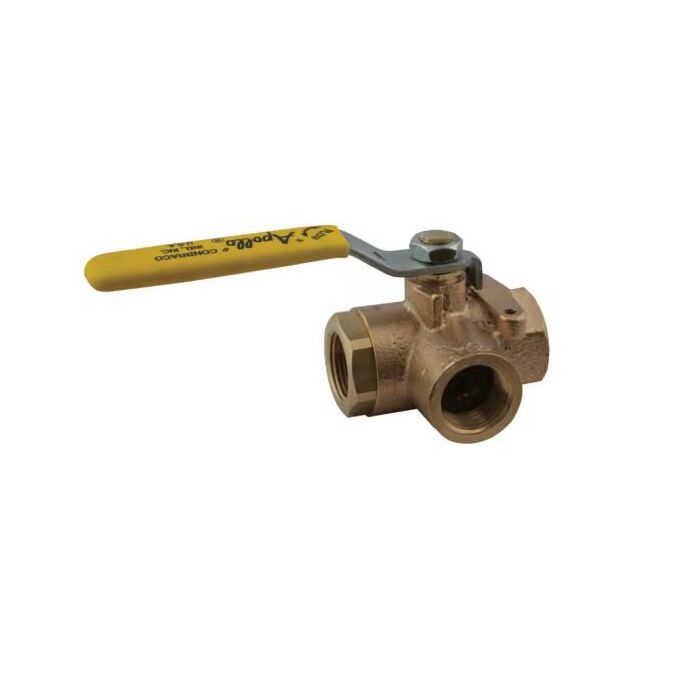

1-1/4 in FNPT Standard Ball Valve
SKU: 7060601
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$157.99
Features
Specifications
Ball Valve, 1-1/4 in Nominal, FNPT, Standard Port, 400 psi, Media: Cold Water, Lever Actuator, 3 Ports/Ways, 21 Cv Flow Coefficient, Material Standard: ASTM B584, Bronze Body, RPTFE Seat, Brass Stem, MPTFE Seal, Zinc Plated Steel with Vinyl Grip Handle, Brass Ball, -20 to 450 deg F, 8.54 in W
- Two piece bronze body
- Reinforced seats
- Blowout proof stem design
- Adjustable packing gland
- Female NPT thread
- 3-Way bronze body ball valve
| Brand | Apollo |
|---|---|
| UPC | 670750673924 |
| Store Location (Lititz, PA) | Aisle 09, Section N6 |
| Package Length (in) | 6.80" |
| Package Width (in) | 3.00" |
| Package Height (in) | 3.80" |
| Nominal Size | 1-1/4 in |
| Connection Type | FNPT |
| Port Type | Standard |
| Pressure Rating | 400 psi |
| Media | Cold Water |
| Actuator Type | Lever |
| Number of Ports/Ways | 3 |
| Flow Coefficient | 21 Cv |
| Material Standard | ASTM B584 |
| Body Material | Bronze |
| Seat Material | RPTFE |
| Stem Material | Brass |
| Seal Material | MPTFE |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Ball Material | Brass |
| Temperature Rating | -20 to 450 deg F |
| Dimensions | 8.54 in W |
