3-Wire 2-Pole Illuminated Cord Connector - 15A/125V
SKU: 515CVLIT
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$14.49
Features
Specifications
Downloads

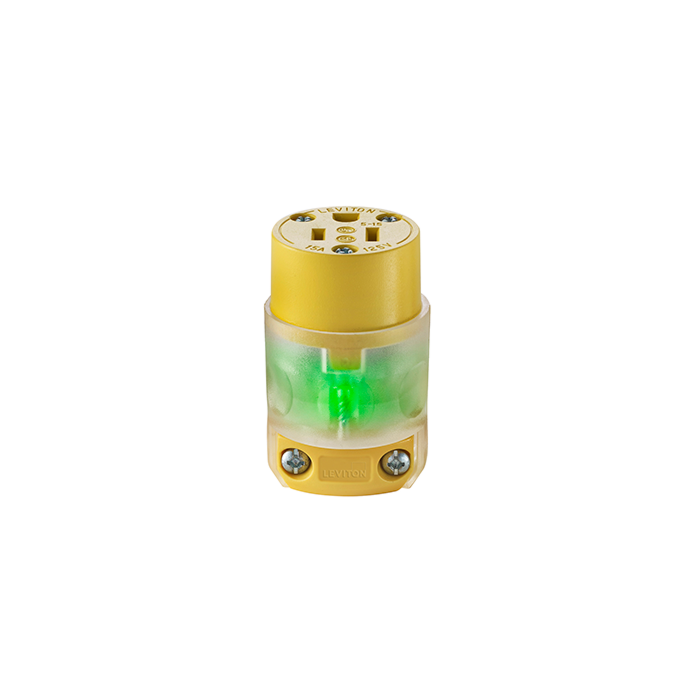

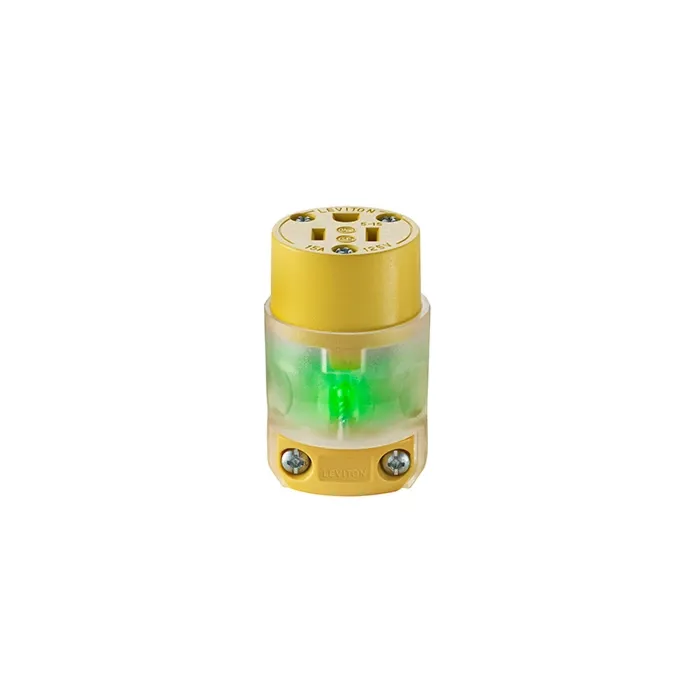

This Leviton 15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Straight Blade Connector is a lighted, residential-grade, grounded plug designed for both indoor and outdoor use. Its rugged construction with an EPTR rubber backing provides resistance to moisture, chemicals, and abuse, ensuring durability in harsh conditions. A green neon light indicates when power is flowing through the cord. The connector features deep-slotted, backed-out terminal screws with backwire clamps for secure connections and maximum conductivity.
- Ideal for replacement of plugs on tools, appliances, and extension cords
- Green light indicates power is flowing through to the cord
- Resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18-12 AWG
| Brand | Leviton |
|---|---|
| UPC | 078477674864 |
| Store Location (Lititz, PA) | Aisle 08, Section C1 |
| Package Length (in) | 1.54" |
| Package Width (in) | 1.54" |
| Package Height (in) | 2.56" |
| Manufacturer Part Number | 515CV-LIT |
| Amperage | 15 |
| Voltage | 125 |
| Number Of Wires | 3 |
| Number of Poles | 2 |
| Grade | Residential |
| Grounding | Yes |
| NEMA Configuration | 5-15R |
| Material | Vinyl |
| Cord Diameter | 0.245 In. to 0.700 In. |
| Color | Yellow |
| For Use With | Model No. 515 |
